Creating project prompts
KULT provides user modules that you can use to create dialog boxes to pause a test sequence with a
prompt. These dialog boxes are available as user modules, shown in the table below.
You define the text message for the prompt. When one of these user modules is run, the test
sequence pauses. The test sequence continues when a button on the dialog box is selected.
Winulib user library
User module Description
AbortRetryIgnoreDialog
Pause test sequence with a prompt to Abort, Retry or Ignore
InputOkCancelDialog
Pause test sequence for an input prompt; enter input data (OK) or Cancel
OkCancelDialog
Pause test sequence with a prompt to continue (OK) or Cancel
OkDialog
Pause test sequence with a prompt to continue (OK)
RetryCancelDialog
Pause test sequence with a prompt to Retry or Cancel
YesNoCancelDialog
Pause test sequence with a Yes, No, or Cancel decision prompt
YesNoDialog
Pause test sequence with a Yes or No decision prompt
Using dialog boxes
The Winulib user library has user modules for six action or decision dialog boxes and one input
dialog box. The dialog box, with example prompts, are shown in Dialog box formats (on page 8-63
).
The text message for a prompt is entered by the user into the user module. See Winulib user-library
reference (on page 6-321) for details on the user modules.
An example using the OK dialog box is provided in Dialog box test examples (on page 8-65).

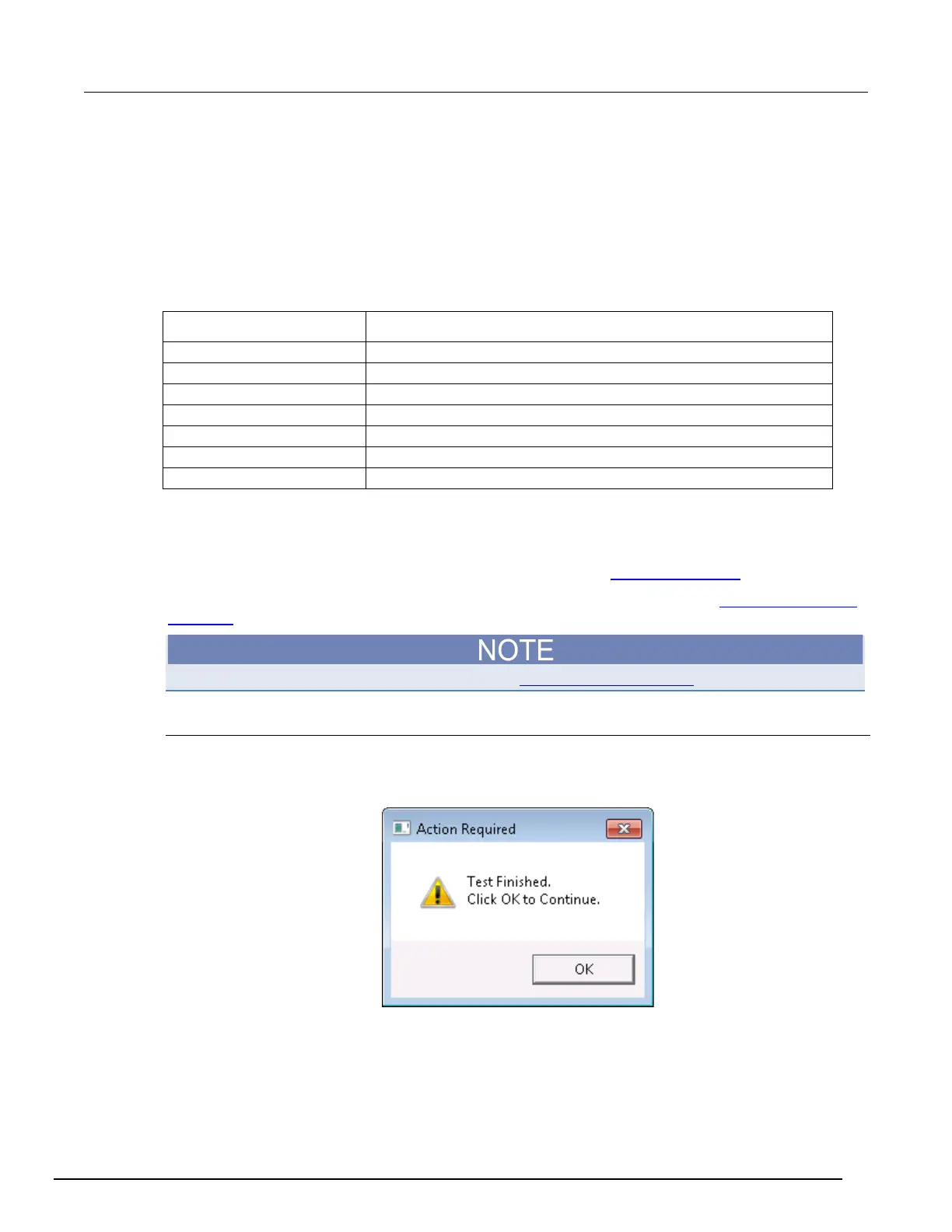

Dialog box formats
The OK dialog box in the following figures has only one button. You can use this dialog box to pause
a test sequence to make an announcement (for example, "Test Finished"), or prompt for an action (for
example, "Connect 590 to DUT"). When the OK button is clicked, the test sequence continues.
