Introduction
The 82 C-V System uses a Keithley Instruments 590 C-V Analyzer and a Keithley Instruments 595
Quasistatic C-V Meter to make simultaneous C-V measurements. The complete system is shown in
the figure below. Projects for the 4200A-SCS are provided to make simultaneous C-V measurements,
STVS measurements for mobile ion extraction, and minority carrier generation lifetime
measurements.

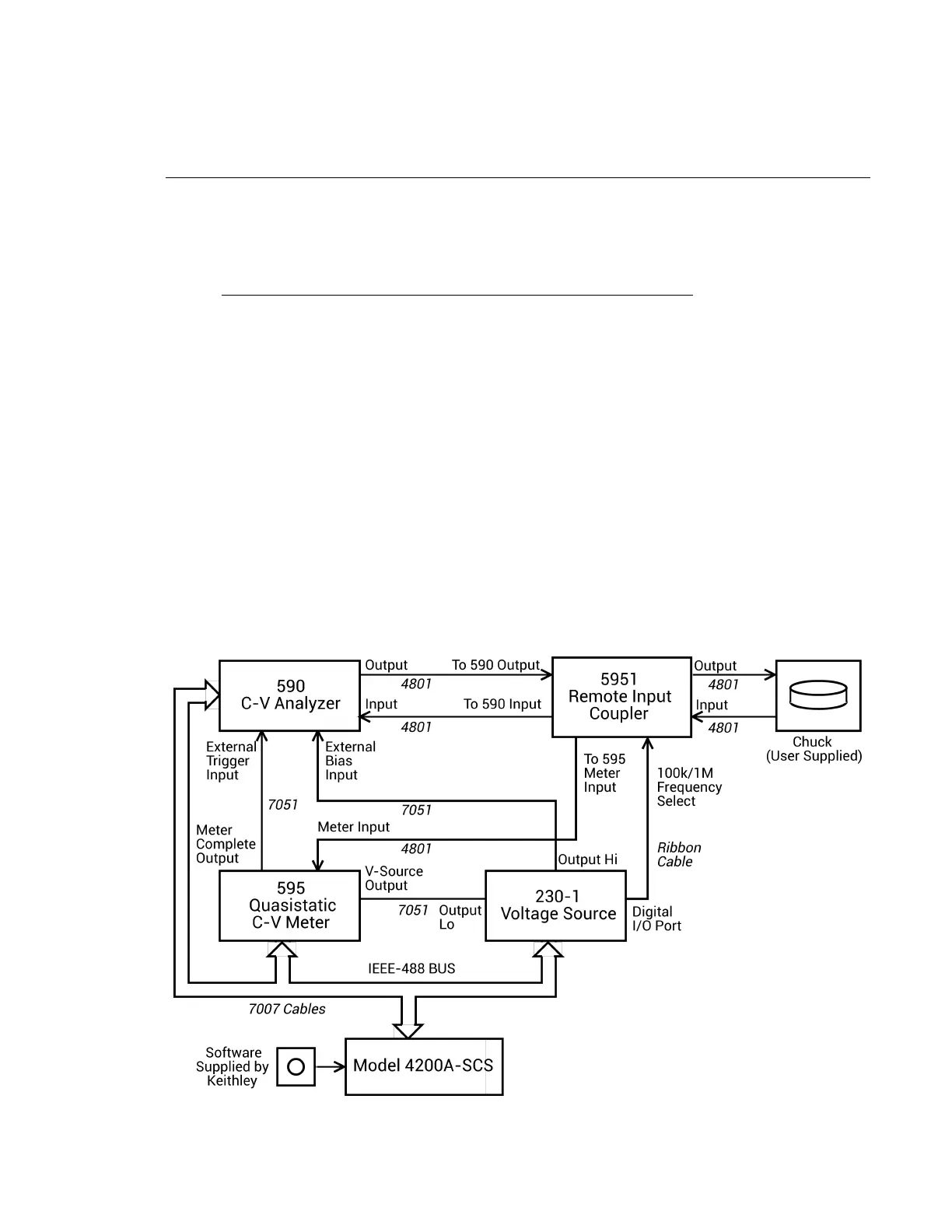

Figure 579: 82 C-V System block diagram
Appendix D
Using a Model 82 C-V System
