Keithley 4200A-SCS Reference Manual

Model 4200A
-SCS Parameter Analyzer Reference Manual Section 2: Conne
ctions and configuration
4200A-901-01 Rev. C / February 2017 2-7
Preamplifier connections
When using more than one preamplifier, use the ground unit for circuit COMMON connections
instead of the outer shield of the preamplifier terminals (refer to Using the ground unit (on page 2-8)).
Connecting the preamplifier to the SMU
The preamplifier must be connected to the SMU before use. The connection method used depends
on the mounting method (rear panel or remote). See Preamplifier mounting (on page 3-16
) for details.
Turn off the system and disconnect the power cord before connecting or disconnecting the
preamplifier. Failure to do so may result in SMU or preamplifier damage, possibly voiding the
warranty.
Preamplifier local sense connections
The next figures show typical preamplifier connections using local sensing. Use a triaxial cable to
make your connections as follows:
• Connect preamplifier FORCE (center conductor of FORCE terminal) to DUT HI.
• Connect signal COMMON (outer shield of FORCE terminal) to DUT LO.

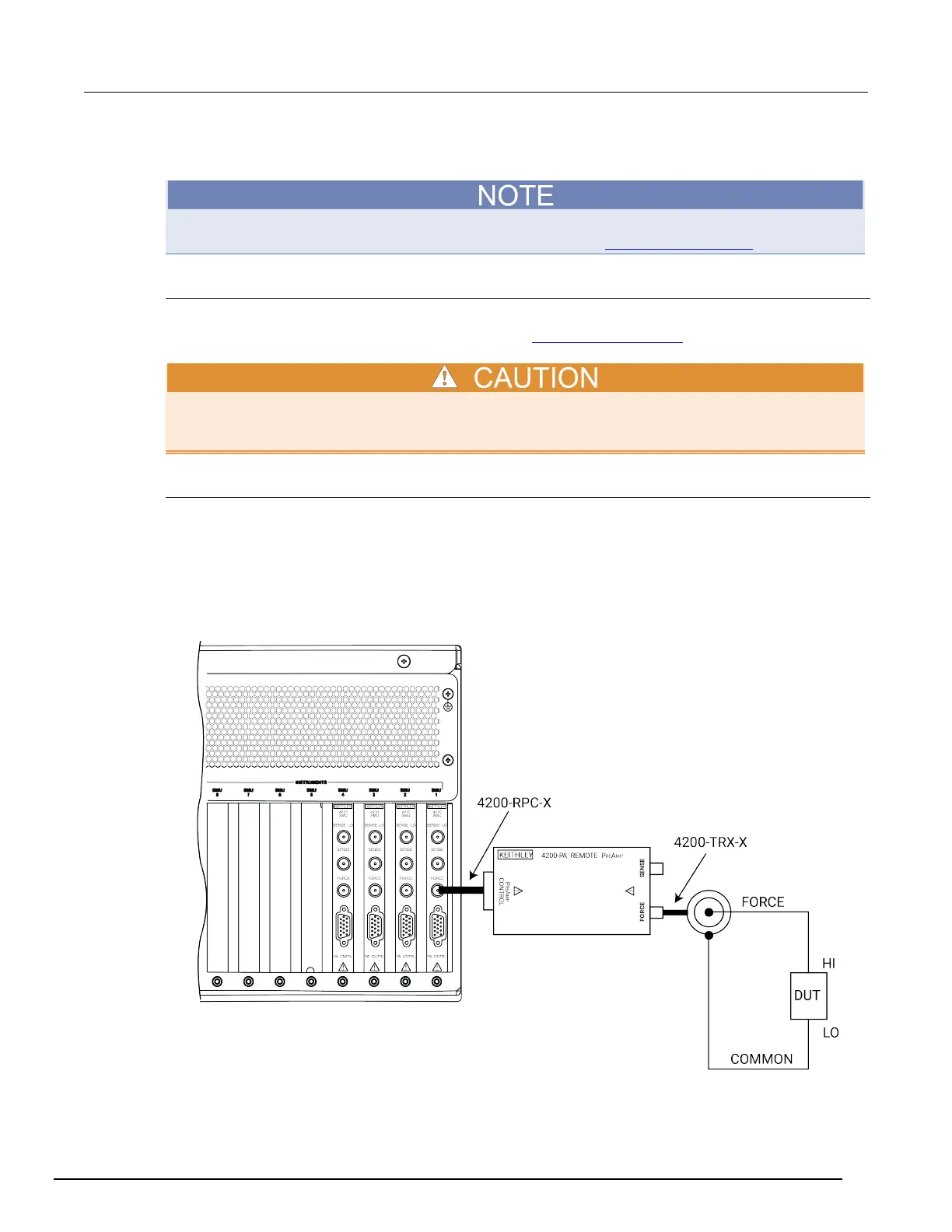

Figure 11: Preamplifier local sense connections
