Keithley 4200A-SCS Reference Manual

Model 4200A
-SCS Parameter Analyzer Reference Manual Appendix A:
Using switch matrices
4200A-901-01 Rev. C / February 2017 A-23
Keysight Model 8110A pulse generator signal path
The next figure shows the HI signal path through the 7174A matrix card. However, the pulse
generator can also be used with other two matrix card types.
Note that the pulse generator LO is not routed through the matrix card. A separate external return
path is required. The chassis of the pulse generator is output LO. As shown in the next figure, use a
banana plug cable that is terminated with a spade lug on one end. Connect the banana plug end of
the cable to the Common banana jack of the GNDU, and attach the spade lug end to a chassis screw
on the pulse generator.

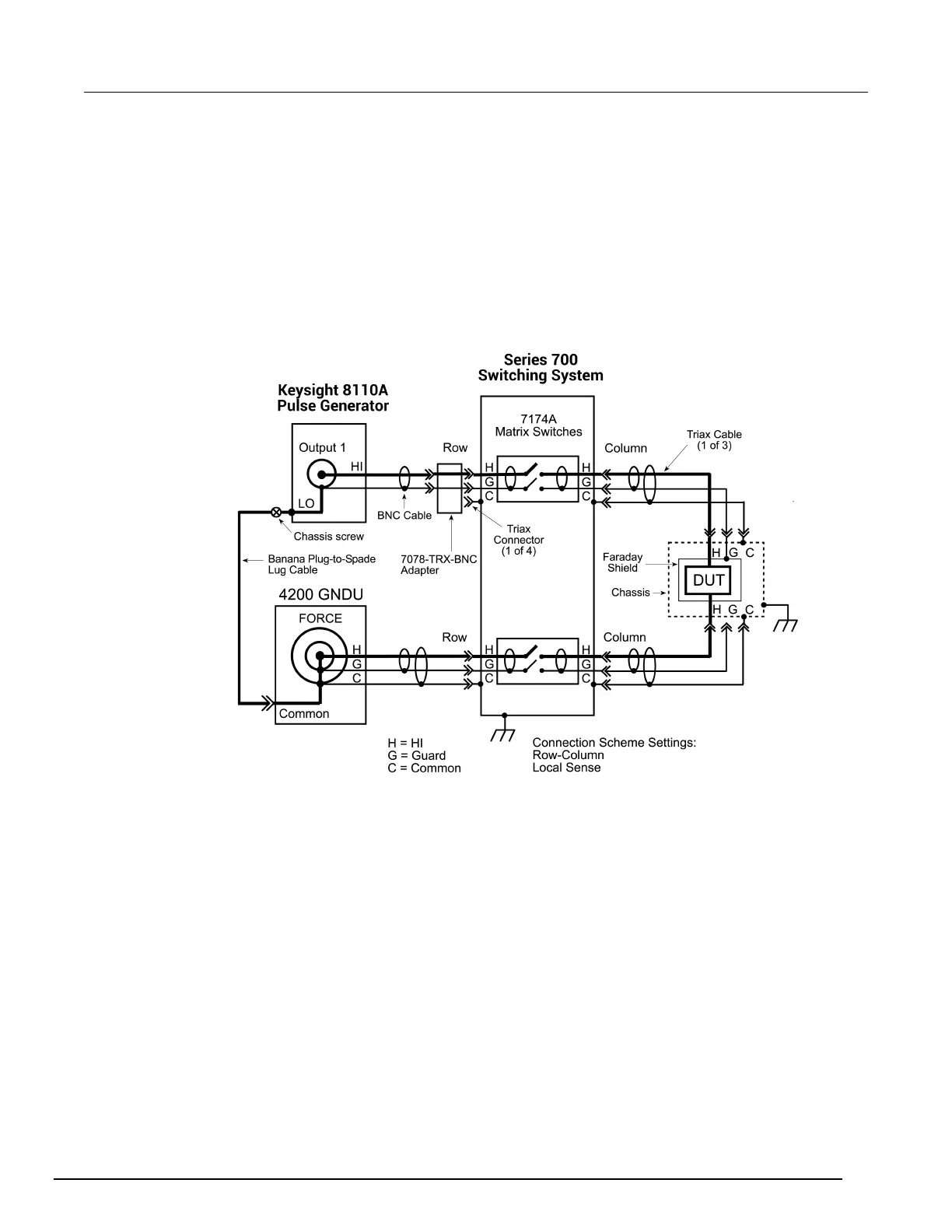

Figure 539: Keysight Model 8110A signal path through a 7174A matrix card
