H: Using a Micromanipulator 8860 Prober Model 4200A-SCS Parameter Analyzer

Reference Manual

H-6 4200A-901-01 Rev. C / February 2017

# prbcnfg.dat - EXAMPLE Prober Configuration File for MM40 Prober

# The following tag, "PRBCNFG", is used by the engine in order to determine

# the MAX number of SLOTS and CASSETTES for a given prober at runtime.

# for OPTIONS ""== NULL, max 32 chars in string

# Example

# 01234567890

#PROBER_1_OPTIONS=1,1,1,1,1,1

# OcrPresent

# AutoAlnPresent

# ProfilerPresent

# HotchuckPresent

# HandlerPresent

# Probe2PadPresent

# The PROBER_x_PROBTYPE fields needs to be set to one of the following names.

# Configuration for serial probers:

# Example configuration for MM40 prober

PROBER_1_PROBTYPE=MM40

PROBER_1_OPTIONS=0,0,0,0,0,0

PROBER_1_IO_MODE=SERIAL

PROBER_1_DEVICE_NAME=COM1

PROBER_1_BAUDRATE=9600

PROBER_1_TIMEOUT=300

PROBER_1_SHORT_TIMEOUT=5

PROBER_1_MAX_SLOT=25

PROBER_1_MAX_CASSETTE=1

Set up wafer geometry

On the pcBridge computer:

1. From the pcLaunch window, click the pcNav button to open the pcNav window.

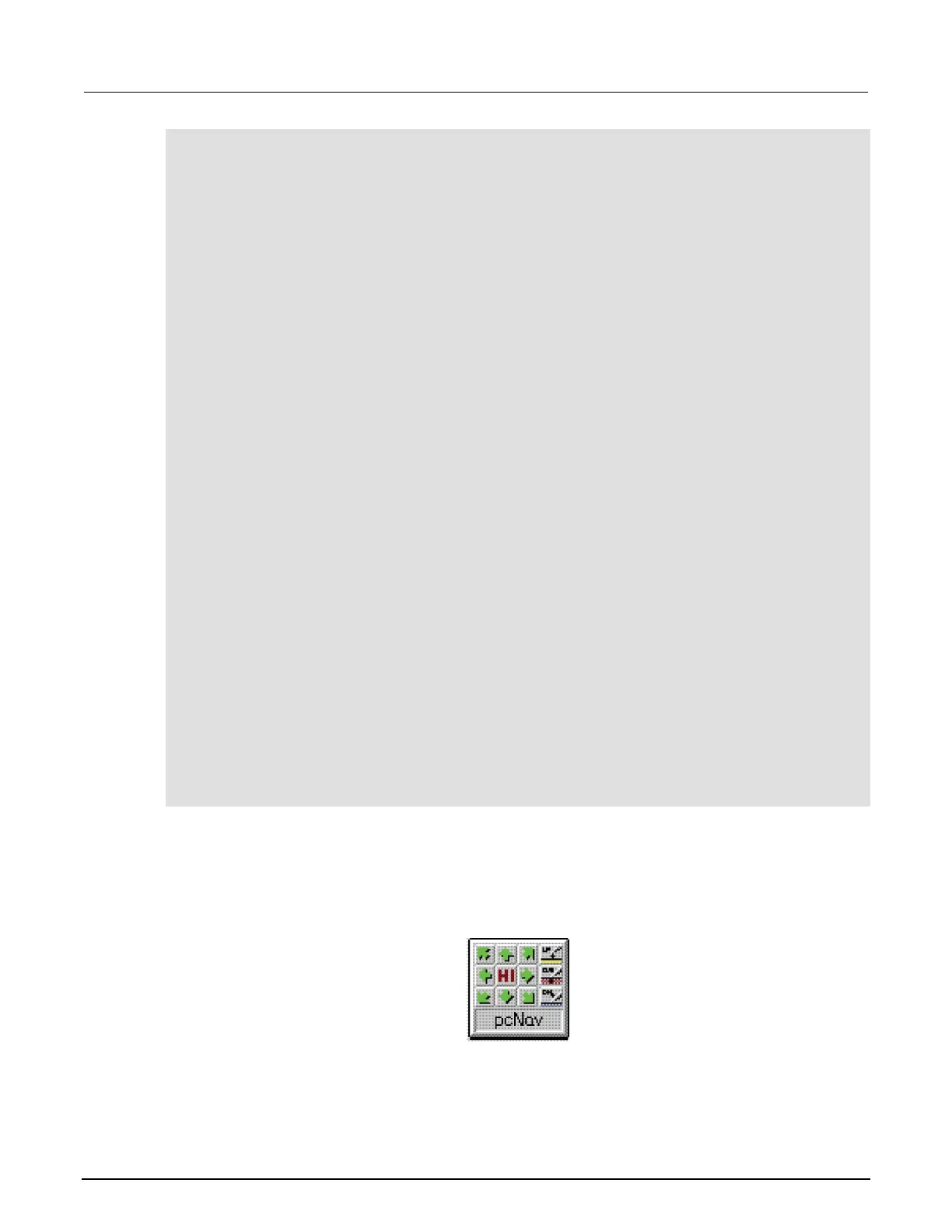

Figure 681: pcNav button

Keithley 4200A-SCS Reference Manual
