Keithley 4200A-SCS Reference Manual

Model 4200A
-SCS Parameter Analyzer Reference Manual Appendix H:
Using a Micromanipulator 8860 Prober
4200A-901-01 Rev. C / February 2017 H-5

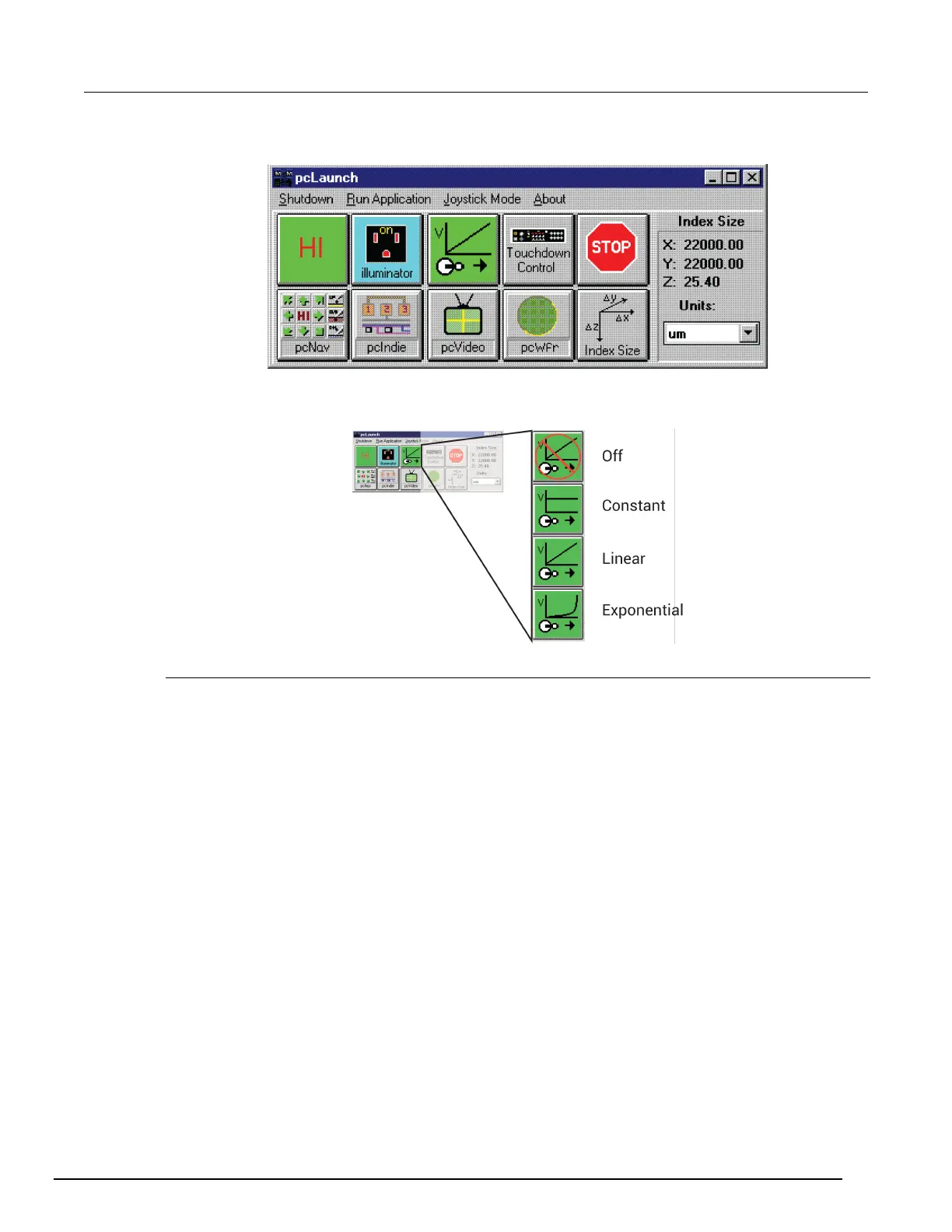

Figure 679: pcLaunch window
10. From the pcLaunch window, set the Joystick Mode for Linear.
Figure 680: Joystick modes
Modify the prober configuration file
The default prober configuration file is shown below. As shown, the file is configured for use with
serial communications.
Configuration file location: C:\s4200\sys\dat\prbcnfg_MM40.dat
Use the 4200A-SCS to modify the file if needed.
