Appendix

H: Using a Micromanipulator 8860 Prober Model 4200A-SCS Parameter Analyzer

Reference Manual

H-4 4200A-901-01 Rev. C / February 2017

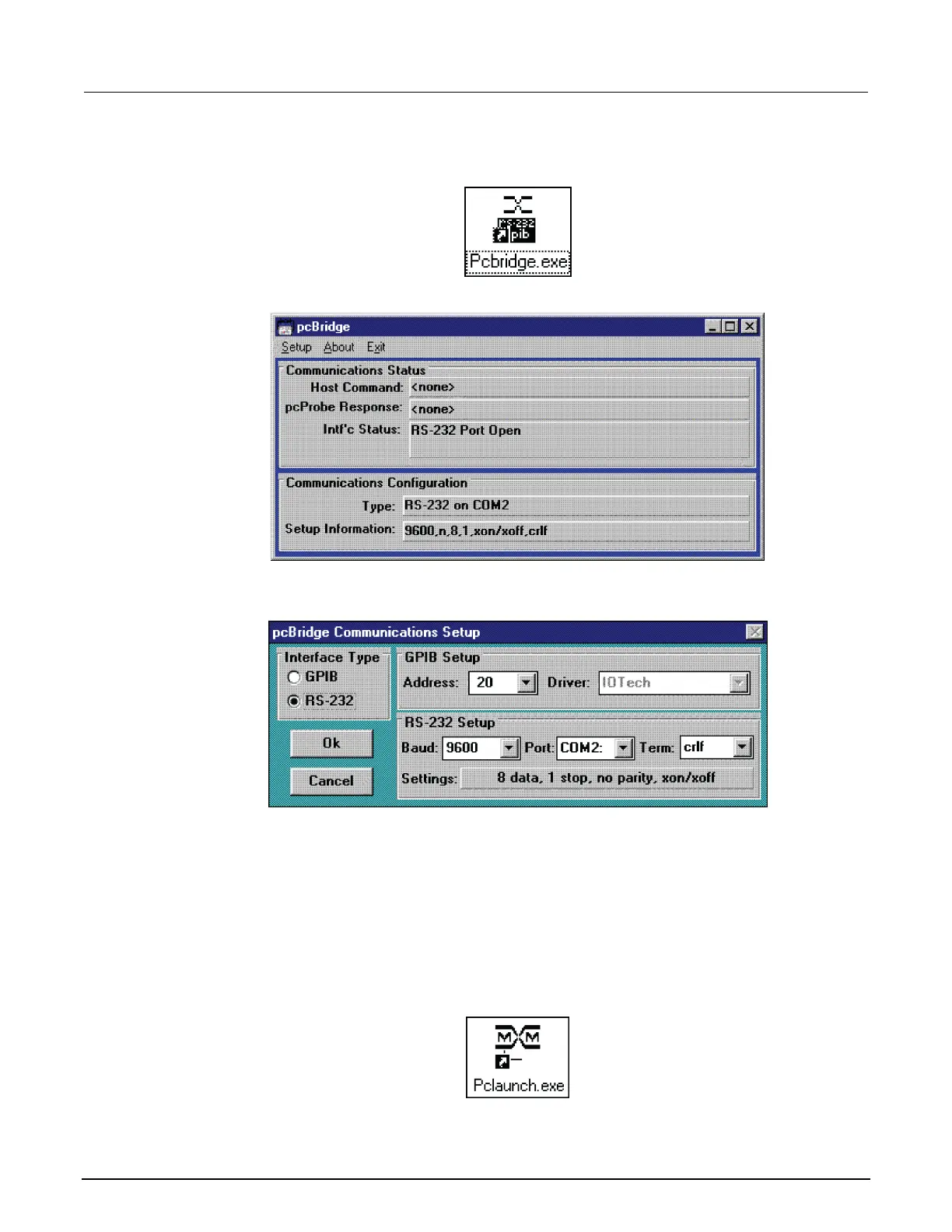

5. Double-click the pcBridge icon on the desktop to open the main pcBridge window.

Figure 675: pcBridge icon

Figure 676: Prober setup: Main pcBridge window

6. Select the Setup menu. The pcBridge Communications Setup window is displayed.

Figure 677: pcBridge window

7. Use the pcBridge Communications Setup to configure the communications settings. These

settings should be 8 data, 1 stop, no parity, xon/xoff.

• Interface Type: RS232

• Baud: 9600

• Port: COM2

• Term: cr and lf (termination character of carriage-return and line-feed)

8. Click OK.

9. Click the pcLaunch icon to open the main pcLaunch window.

Figure 678: pcLaunch icon
