Model 4200A

-SCS Parameter Analyzer Reference Manual Section 2:

Connections and configuration

4200A-901-01 Rev. C / February 2017 2-17

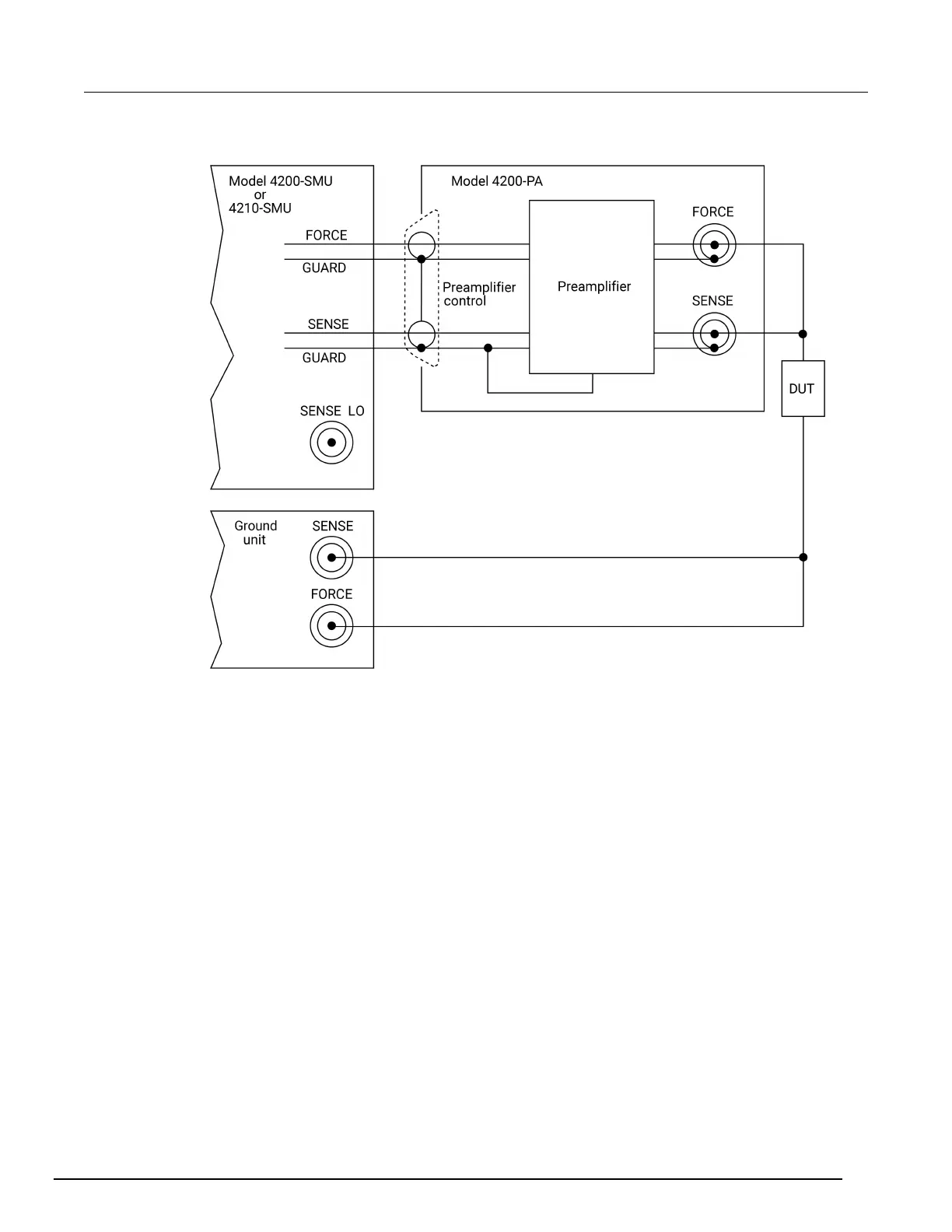

Figure 23: Basic SMU and preamplifier source-measure configuration

Test equipment connections

The various forms of test equipment that can be used with the 4200A-SCS include:

• Recommended connecting cables

• Switching system connections

• Test fixture connections

• Prober connections
