To set up 4145B emulation:
1. Select KXCI Settings. The KXCI Settings dialog box is displayed, as shown in the following
figure.
2. In the Function column, select the 4145 function that the SMU will emulate.
3. In the Number column, select the number that is used for the device in your 4145B program.

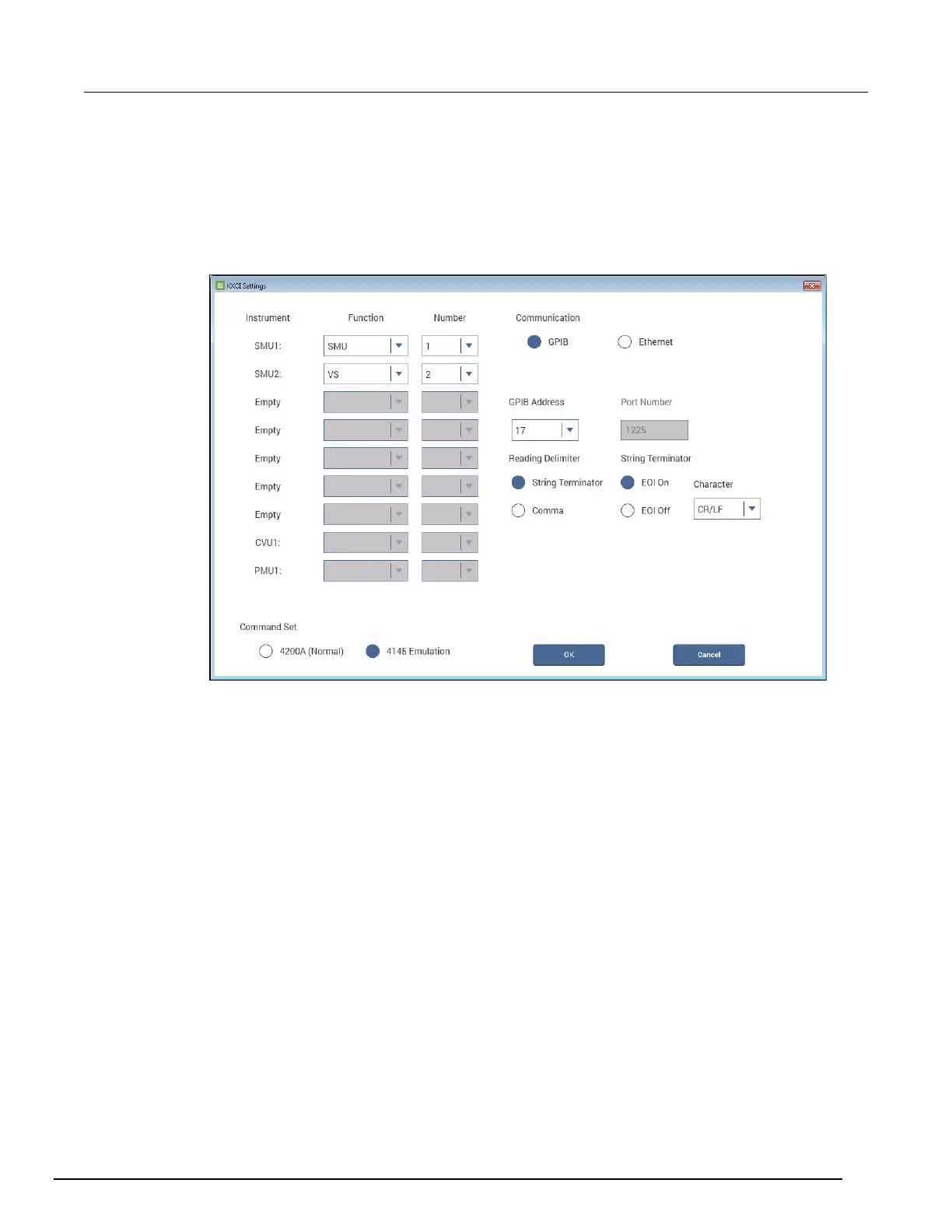

Figure 417: KXCI Settings for 4145B emulation
Command Set
The Command Set option chooses the control mode through which KXCI runs the 4200A-SCS:
4200A (Normal) or 4145 Emulation.
4200A (Normal) selects the 4200A command set. This command set includes all the 4145 Emulation
commands plus an additional 4200A-only command.
In 4145 Emulation mode, the KXCI GPIB command set, status model, and output data are similar in
function and format to those supported by the Keysight 4145B Semiconductor Parameter Analyzer,
with substantially expanded performance.
