Model 4200A

-SCS Parameter Analyzer Reference Manual Section 5: Pulse measure and pulse generator units

4200A-901-01 Rev. C / February 2017 5-39

Enable LLEC

This option is available for ITMs.

To enable LLEC:

1. Select the pulse test.

2. Select Configure.

3. In the right pane, select Terminal Settings.

4. Select Advanced.

5. Select Load Line Effect, as shown in the following figure.

6. Select OK.

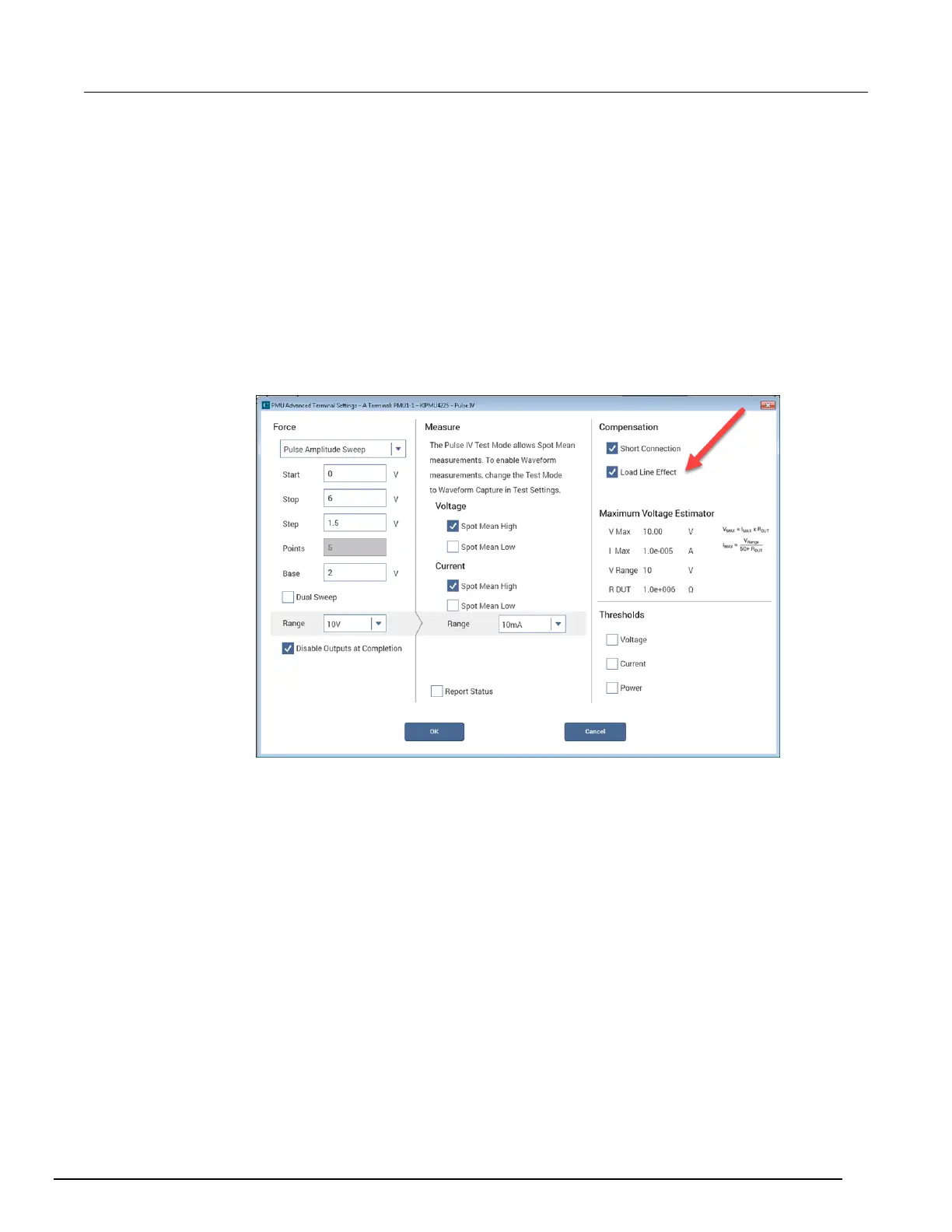

Figure 176: Enabling LLEC
