D: Using a Model 82 C-V System Model 4200A-SCS Parameter Analyzer
D-8 4200A-901-01 Rev. C / February 2017
Make power and GPIB connections
To attach the power and GPIB connections:
1. Use the ribbon cable to connect the DIGITAL I / O PORT on the back of the Model 230-1 to the
TO 230-1 DIGITAL I / O on the back of the Model 5951.
2. Use the power cables to plug in the units.

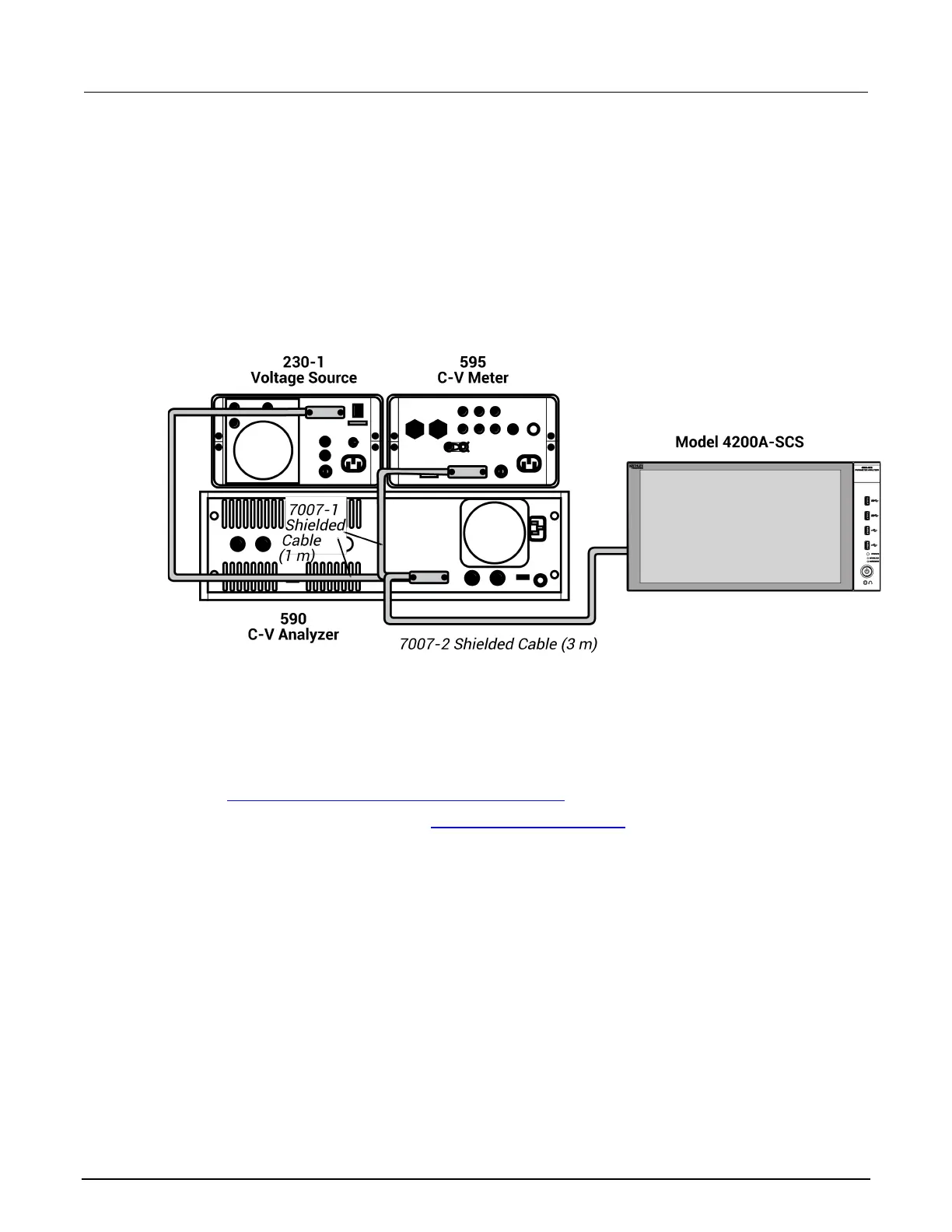

3. The following figure shows the connections for the GPIB bus cables. Use the GPIB bus cables
and connect the Model 590, the Model 595, and the Model 230-1 to the 4200A-SCS through the
GPIB card.
Figure 584: System 82 IEEE-488 connections
Using KCon to add Model 82 C-V System
To use the 4200A-SCS to control instruments in the C-V system, you must add the system to the
4200A-SCS system configuration. You use the Keithley Configuration Utility (KCon) to add the 82 C-V
system to the test system.
Refer to Using KCon to add equipment to the 4200A-SCS (on page 7-7
) for instruction.
For additional detail on KCon, refer to Keithley Configuration Utility (on page 7-1).
