Keithley 4200A-SCS Reference Manual

Model 4200A
-SCS Parameter Analyzer Reference Manual Section 6:
Clarius
4200A-901-01 Rev. C / February 2017 6-63
Operation Mode (PMU)
The operation mode determines what type of test is run on the terminal. Selecting the appropriate
mode simplifies configuration options.
A Pulse Sweep and Pulse Step function are identical. However, in a test where two or more PMUs
are used, the sweep for one PMU is performed on each step of the pulse step of the other PMU. A
pulse step requires that at least one channel be configured for Pulse Sweep.
A Pulse Train outputs one or more pulses of the same magnitude and base level.
When there are two or more PMUs in the test system, the Sweep Master (on page 6-105
) option is
used to select one of them as the master PMU.

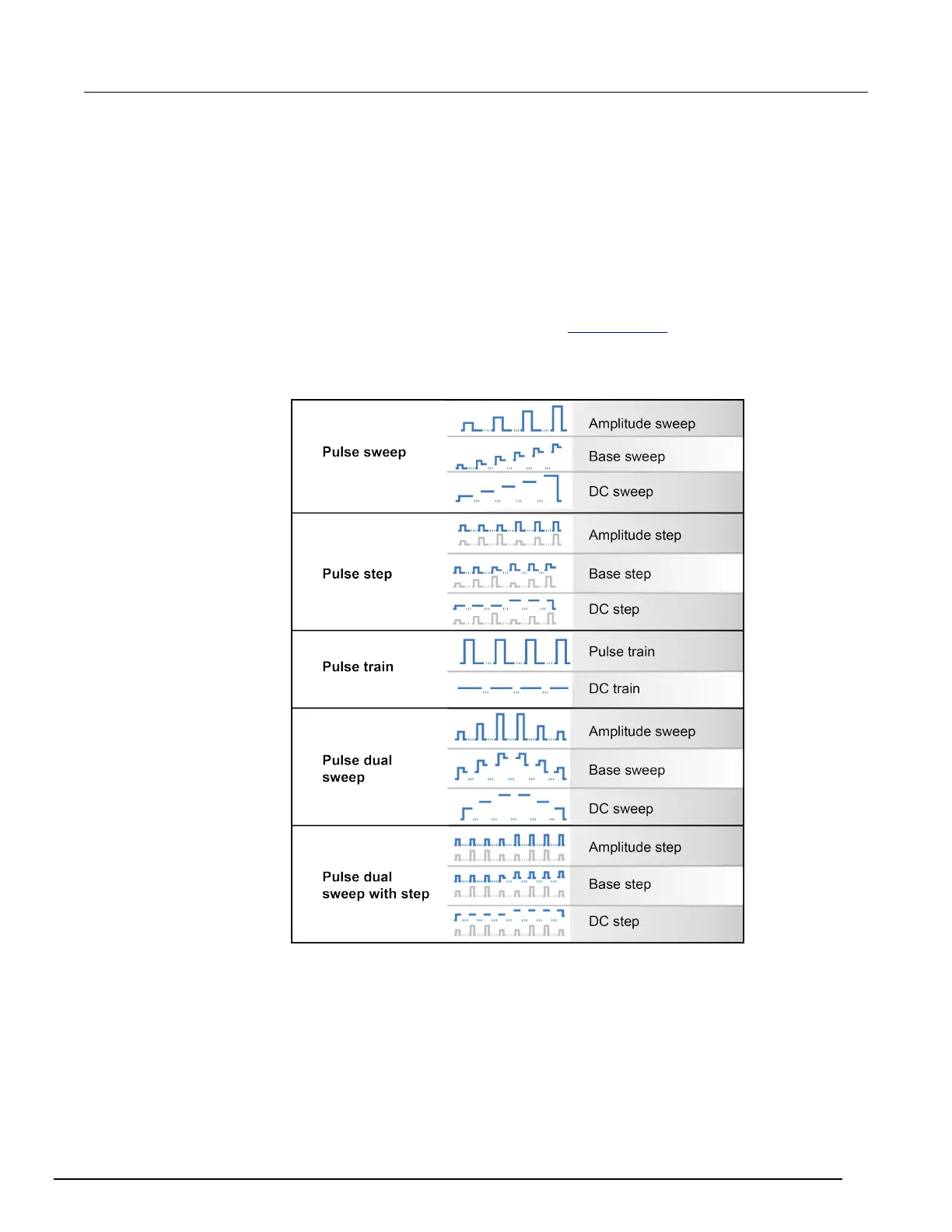

Figure 245: Pulse operation modes
