Sites
A site includes all of the subsites, devices, and tests in the project. If you set up multiple sites, all sites
are identical. They will each have the same type and number of subsites and the sites are repeated
across the wafer.
To add a site to the project tree:
1. Choose Select.
2. Select the Wafer Plan library.
3. Select Site.
4. Select Add. The site is added to the project tree.
Subsites
A subsite is a collection of devices and their associated tests. You can work with devices and tests as
you do in a project that does not include a subsite.
You need to use actions to initiate prober movement between subsites and close matrix channels
between devices.
You can add subsites as show below. If you are using a prober, you can also use probesubsites
from the Project Library to start with a site and subsite template with prober actions.
To add a subsite:
1. Open a project or create a new one.
2. Choose Select.
3. From the Wafer Plan tab, drag Subsite to the project tree.
4. If needed, select Rename, enter a new name, and press Enter.
An example of a project tree with several subsites and prober actions are shown in the following
figure.

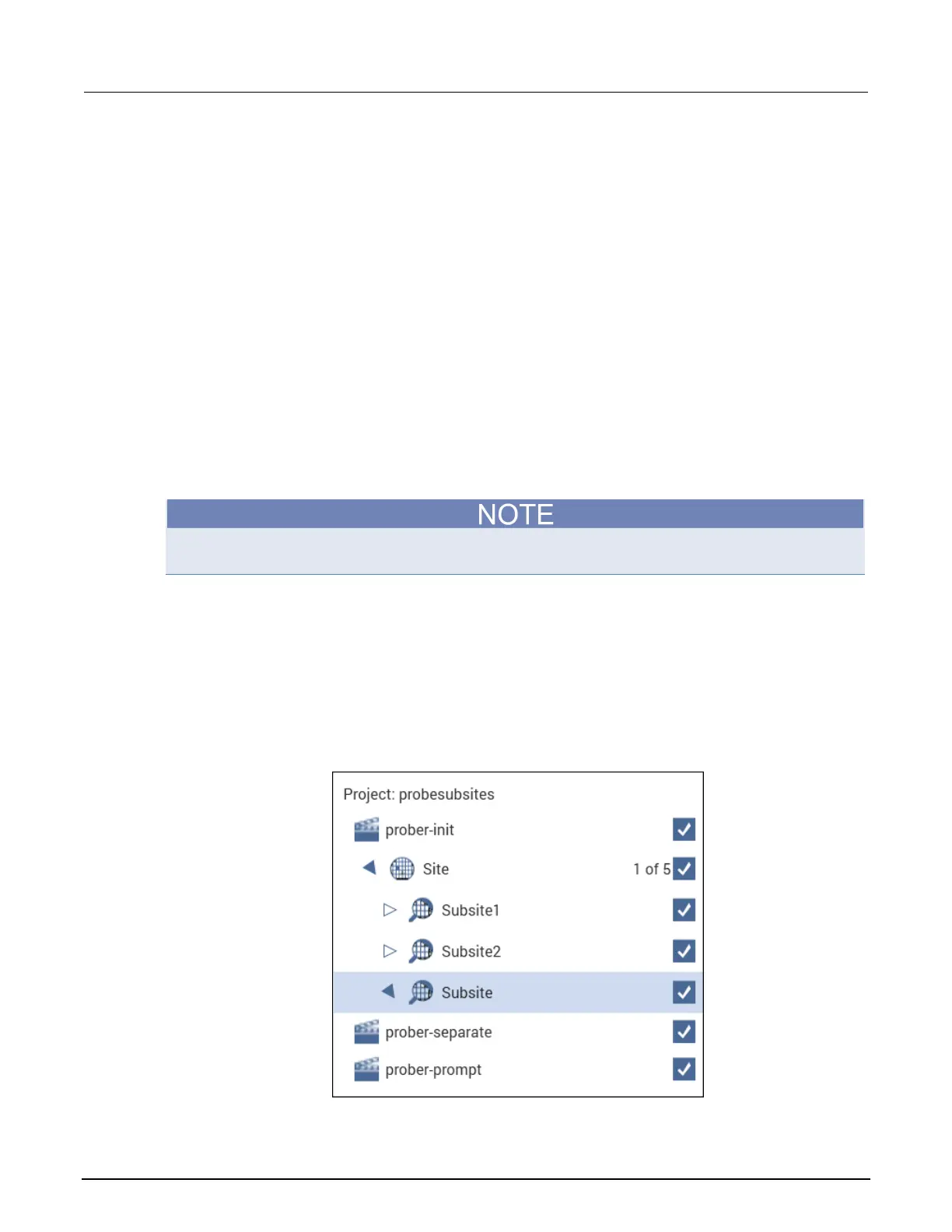

Figure 304: Project tree with subsites example
