Keithley 4200A-SCS - Waveform Discrete Readings; Waveform Average Readings

Model 4200A
-SCS Parameter Analyzer Reference Manual Section 5: Pulse measure and pulse generator units
4200A-901-01 Rev. C / February 2017 5-73
Waveform discrete readings
Enabled voltage and/or current readings and time stamps for every sample of the waveform are
returned in a single data set. The following figure shows how waveform discrete readings are
returned as a data set for two pulse periods with voltage, current, and timestamp readings enabled.

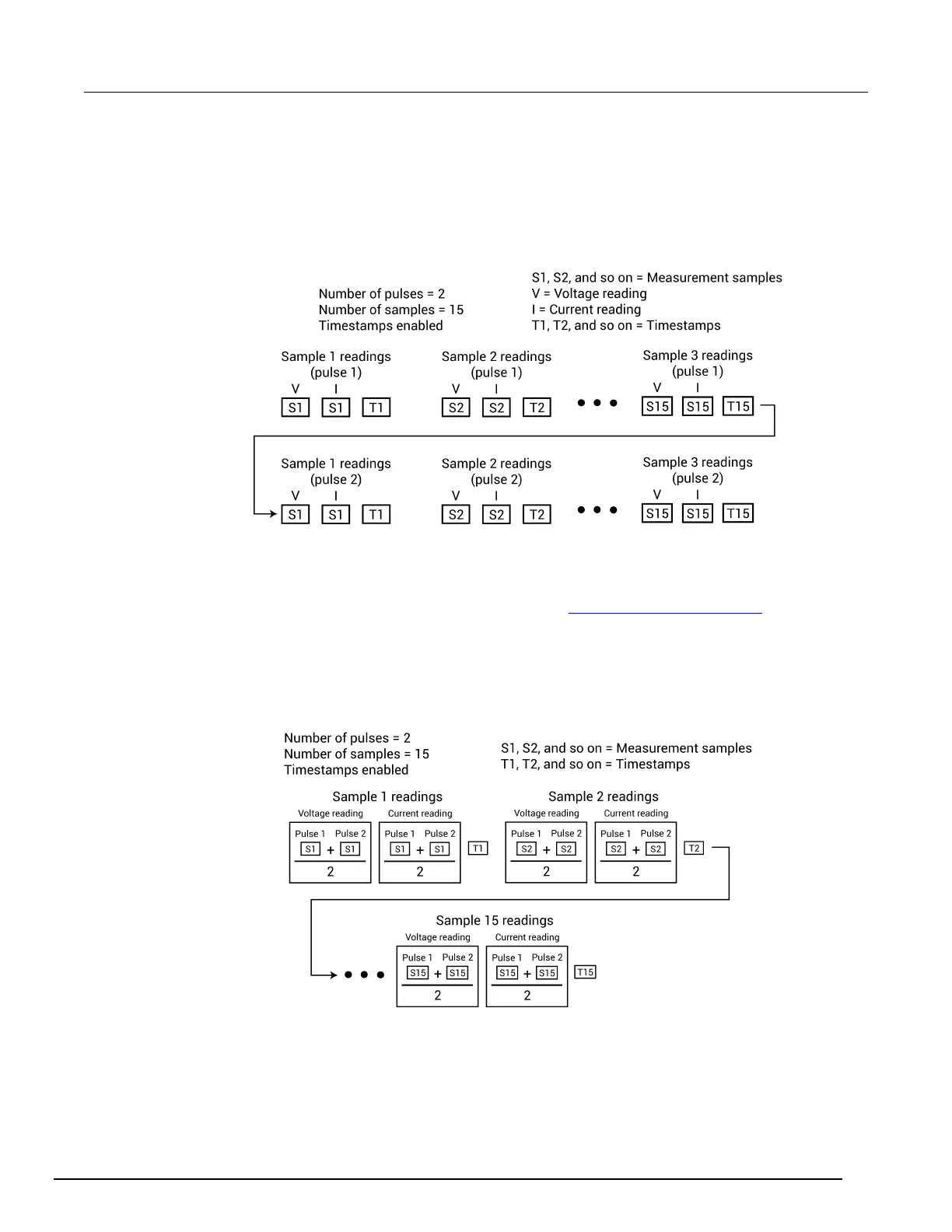

Figure 207: Returned data set for waveform discrete readings
Waveform average readings
For this data acquisition type, each returned reading is a mean average of the corresponding samples
for all the pulses in the burst. For example, in the figure in Waveform discrete readings (on page
5-
73), the V and I readings for sample 1 - pulse 1 would be averaged with the V and I readings for
sample 1 - pulse 2.
The figure below shows how waveform average readings are returned as a data set for two pulse
periods with voltage, current, and time stamp readings enabled.
Figure 208: Returned data set for waveform average readings
