Keithley 4200A-SCS Reference Manual

Model 4200A
-SCS Parameter Analyzer Reference Manual Section 8:
Keithley User Library Tool (KULT)
4200A-901-01 Rev. C / February 2017 8-65
Dialog box test examples
The following examples demonstrate how you can use dialog boxes in a test sequence.
Example: Announce end of test
For this example, you will create a user test module (UTM) that uses the OK dialog user module. This
dialog box announces the end of a test sequence. You can use this UTM in any project at the end of
any test sequence.
To create an end-of-test announcement:
1. In the Clarius project tree, select the last test. The announcement will occur after this test.
2. Choose Select.
3. Select the Tests tab.
4. For the Custom Test, select Choose a test from the pre-programmed library (UTM).
5. Drag Custom Test to the project tree. The test has a red triangle next to it to indicate that it is not
configured.
6. Select Rename.
7. Enter the name End of test prompt.
8. Select Configure.
9. In the Test Setting pane on the right, set the User Libraries to Winulib.
10. Set User Modules to OkDialog.
11. For NumberOfMessages, enter 2.
12. For Message1Text, enter Test Finished.
13. For Message2Text, enter Click OK to continue. An example is shown in the graphic below.

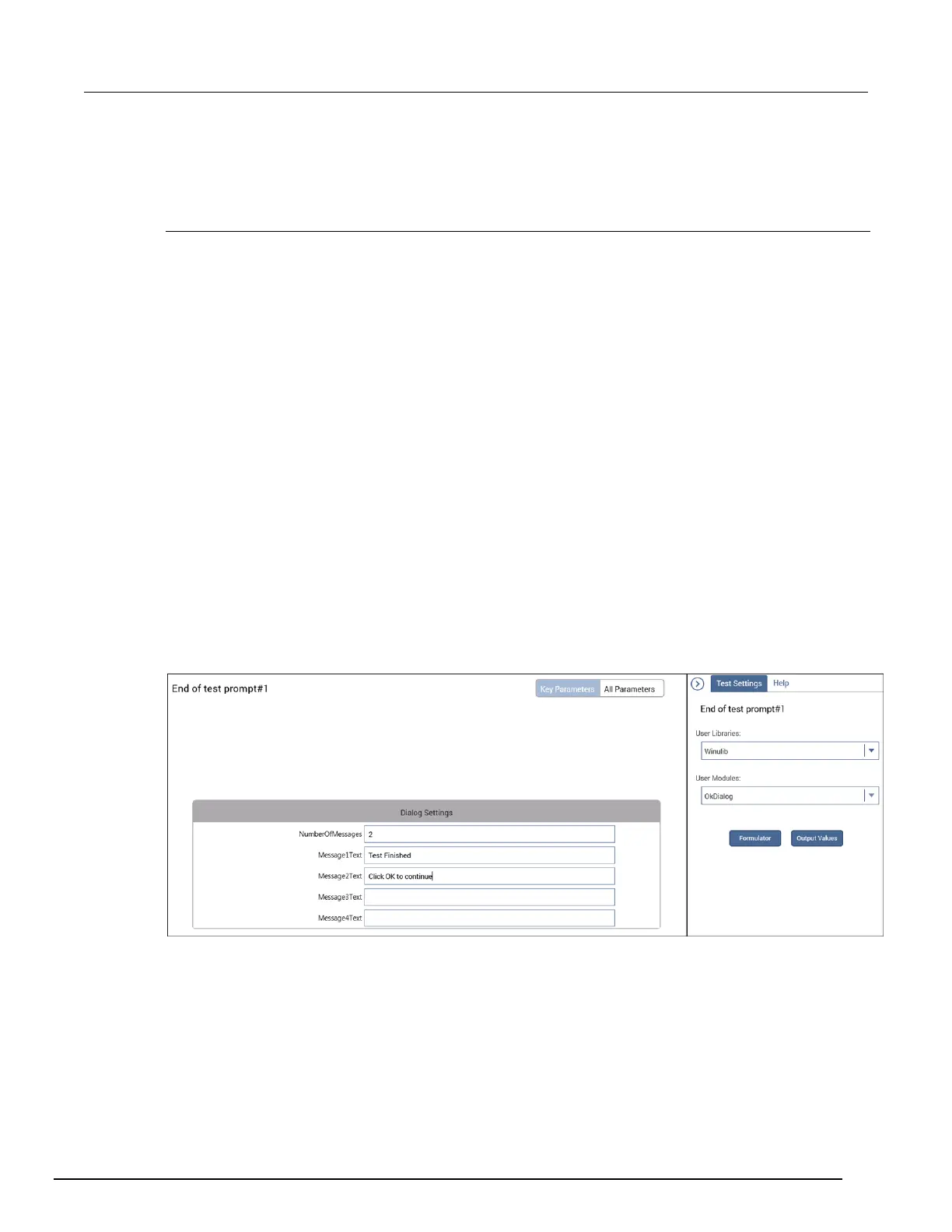

Figure 458: New UTM using OkDialog user module
