8: Keithley User Library Tool (KULT) Model 4200A-SCS Parameter Analyzer

Reference Manual

8-66 4200A-901-01 Rev. C / February 2017

14. Select Save.

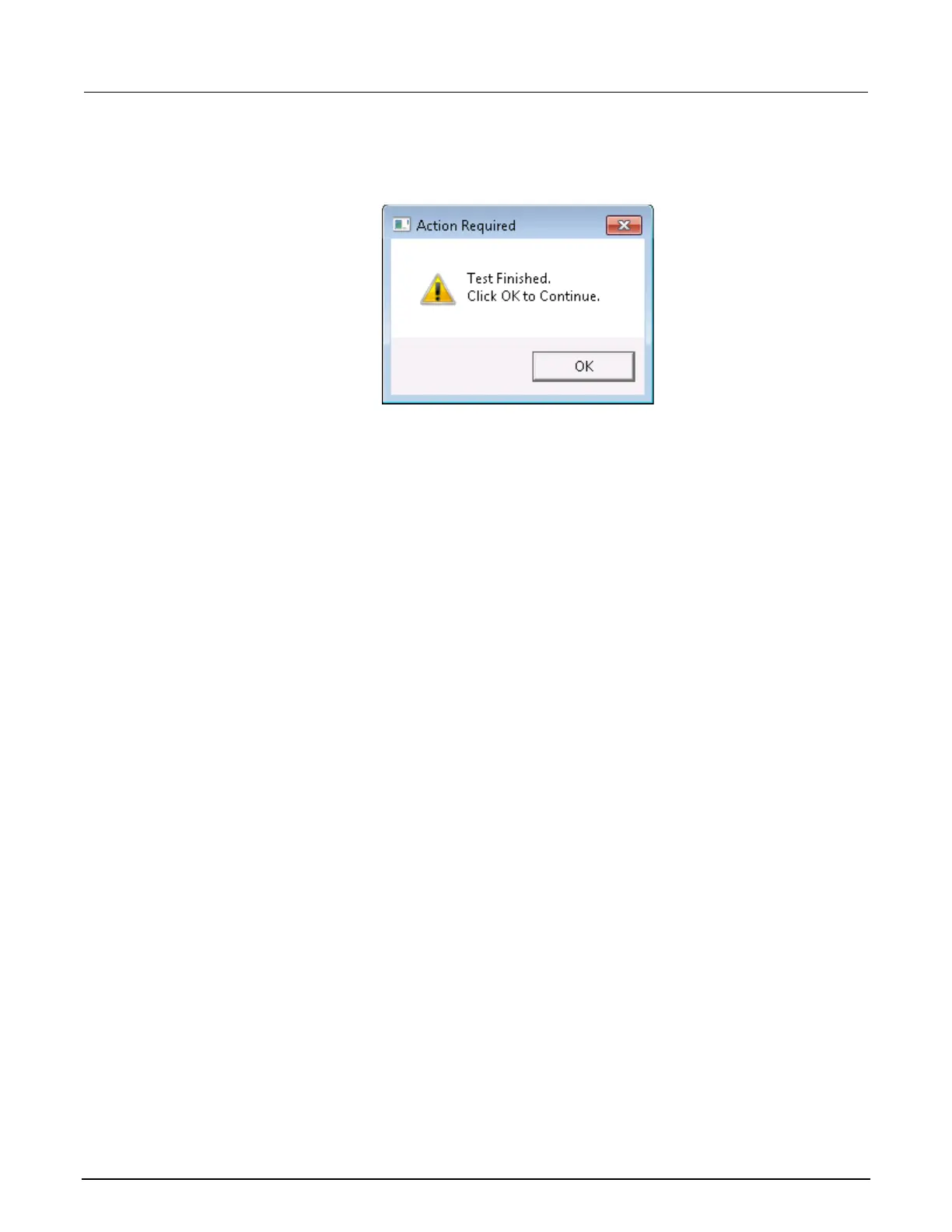

When you run the test sequence, the end of test dialog box is displayed, as shown in the graphic

below. Select OK to continue.
