Keithley 4200A-SCS - Use Kcon to Add a Prober

Model 4200A
-SCS Parameter Analyzer Reference Manual Appendix I:
Using a manual or fake prober
4200A-901-01 Rev. C / February 2017 I-5
Use KCon to add a prober
On the 4200A-SCS, use KCon to add the prober to the configuration:
1. Open KCon.
2. At the bottom of the Configuration Navigator, select Add External Instrument. The Add External
Instrument dialog box is displayed.

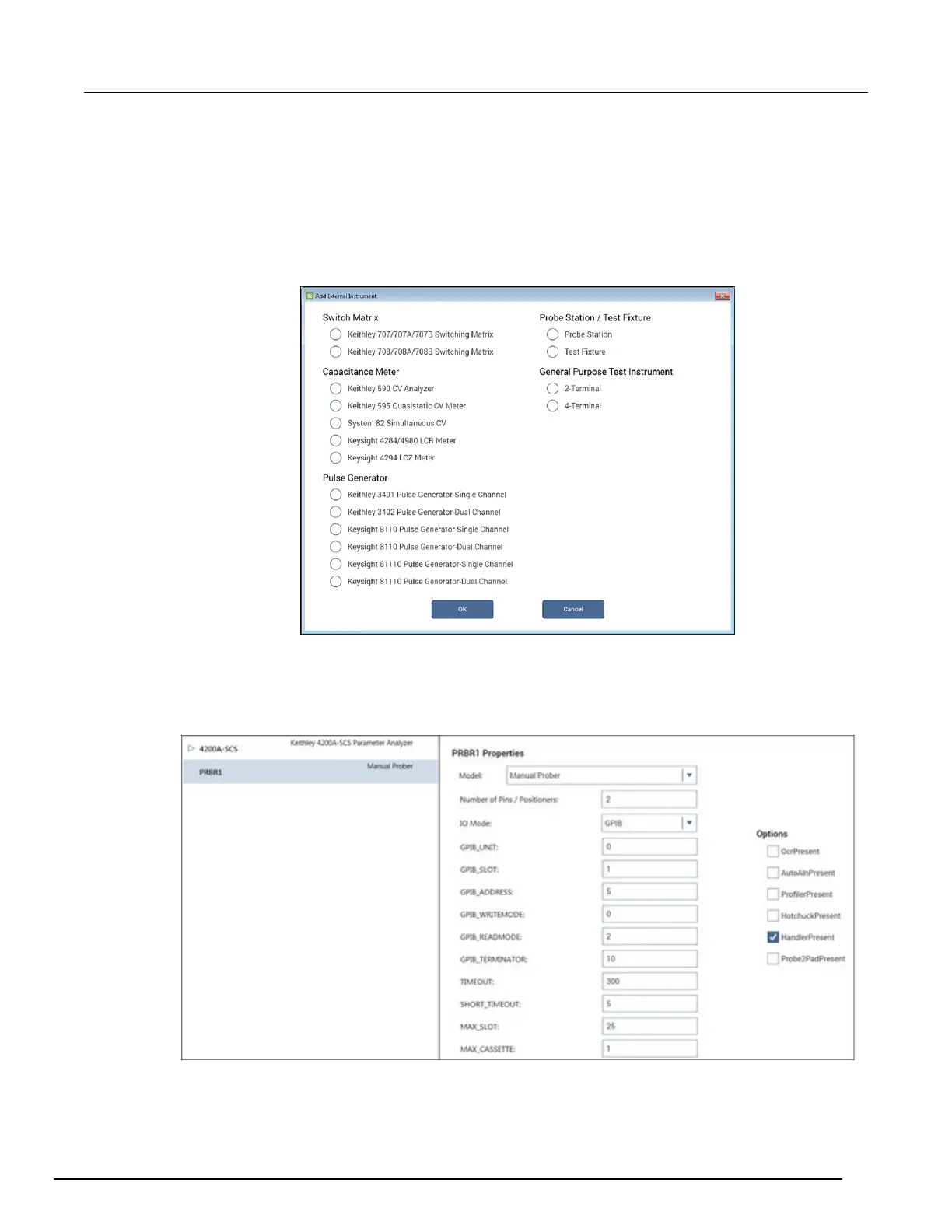

Figure 728: Add a prober in KCon
3. Select Probe Station.
4. Select OK. The KCon navigation displays PRBR1 in the Configuration Navigator and the
properties.
Figure 729: Use KCon to select a prober
5. Select the Manual Prober or the Fake Prober as the model.
