Appendix

D: Using a Model 82 C-V System Model 4200A-SCS Parameter Analyzer

Reference Manual

D-20 4200A-901-01 Rev. C / February 2017

Formulas for capacitance tests

Formulas to calculate data for graphs are in the Formulator for each test. To open the Formulator

dialog box, click Formulator in the Test Settings pane for the selected test. The following figure

shows the Formulator for the system82-cvsweep test used in the simcv project.

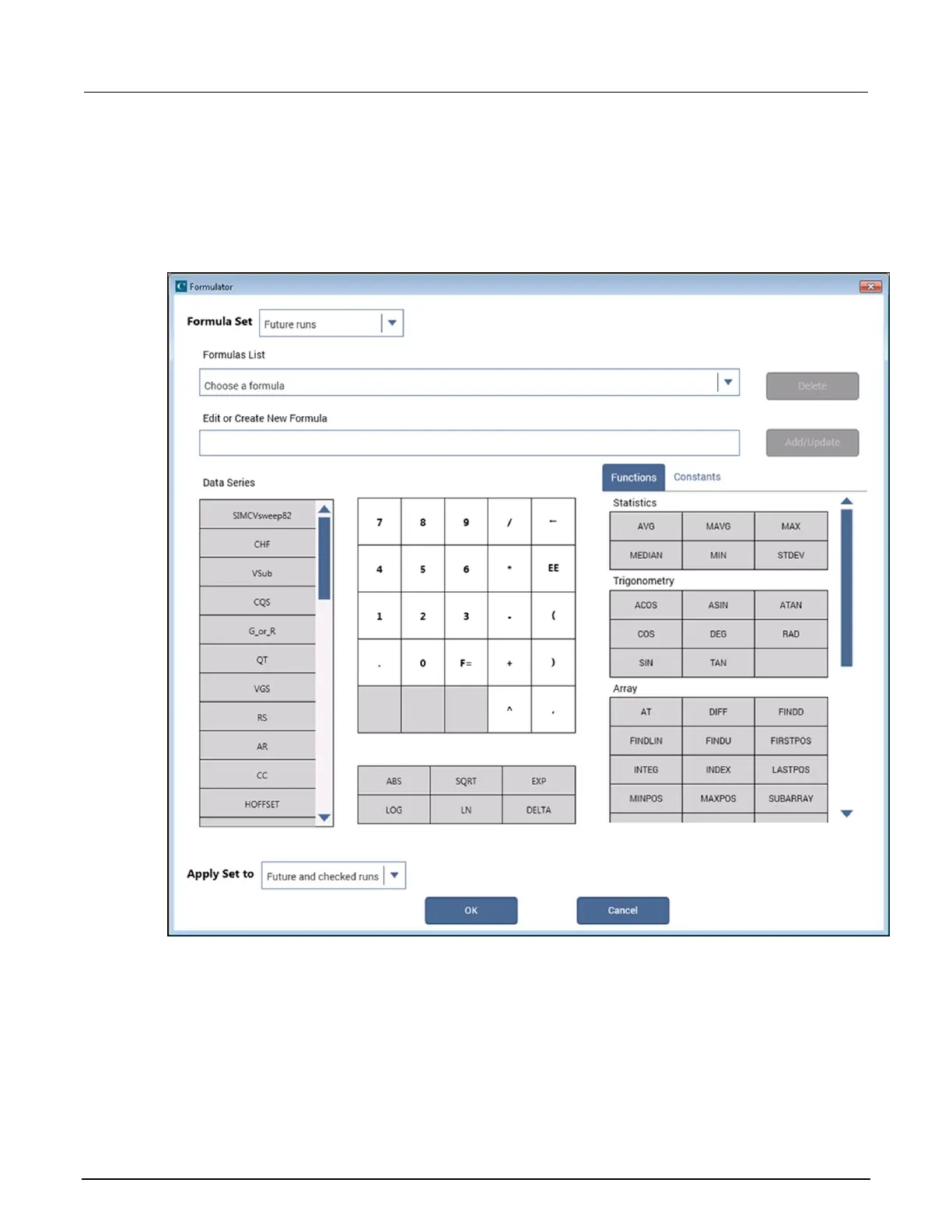

Figure 599: Formulator for system82-cvsweep test (simcv project)
