Enable compensation
To use the values generated by connection compensation, you need to enable compensation for
each test.
When compensation is enabled, the most recently acquired CVU compensation data is applied.
Compensation values can be gathered using the CVU Connection Compensation option in Tools or
through actions and user modules.
To enable compensation:
1. Select the test from the project tree.
2. Select Configure.
3. Select the terminal in the center pane.
4. In the right pane, select Terminal Settings.
5. Under Compensation, select the types of compensation as needed.
6. Make sure Cable Length is the same as the Cable Length setting in the Tools > CVU Connection
Compensation dialog box that was used to generate connection compensation data.

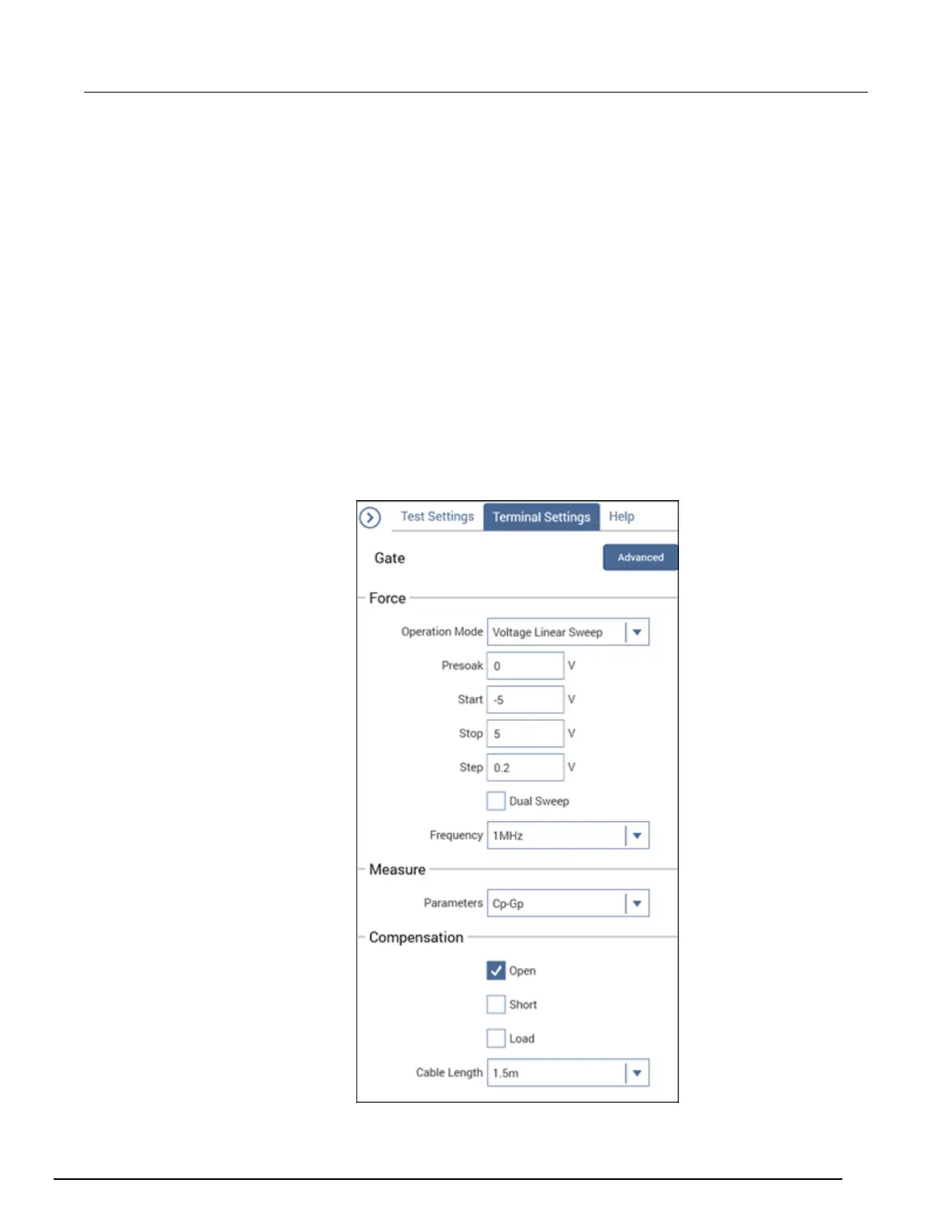

Figure 95: Enable connection compensation
