Using KCon to add 590 C-V Analyzer to system
To use the 4200A-SCS to control an external instrument, that instrument must be added to the
system configuration. The 590 C-V Analyzer is added to the test system using the Keithley
Configuration Utility (KCon).
Refer to Use KCon to add equipment to the 4200A-SCS (on page 7-7
) for instruction.
For additional detail on KCon, refer to Keithley Configuration Utility (KCon) (on page 7-1).
Model 590 test examples
The test examples for the Model 590 C-V Analyzer are controlled by user test modules (UTMs) in the
ivcvswitch project. The following figure shows the tree for the project.
A switch matrix is not used for these examples.

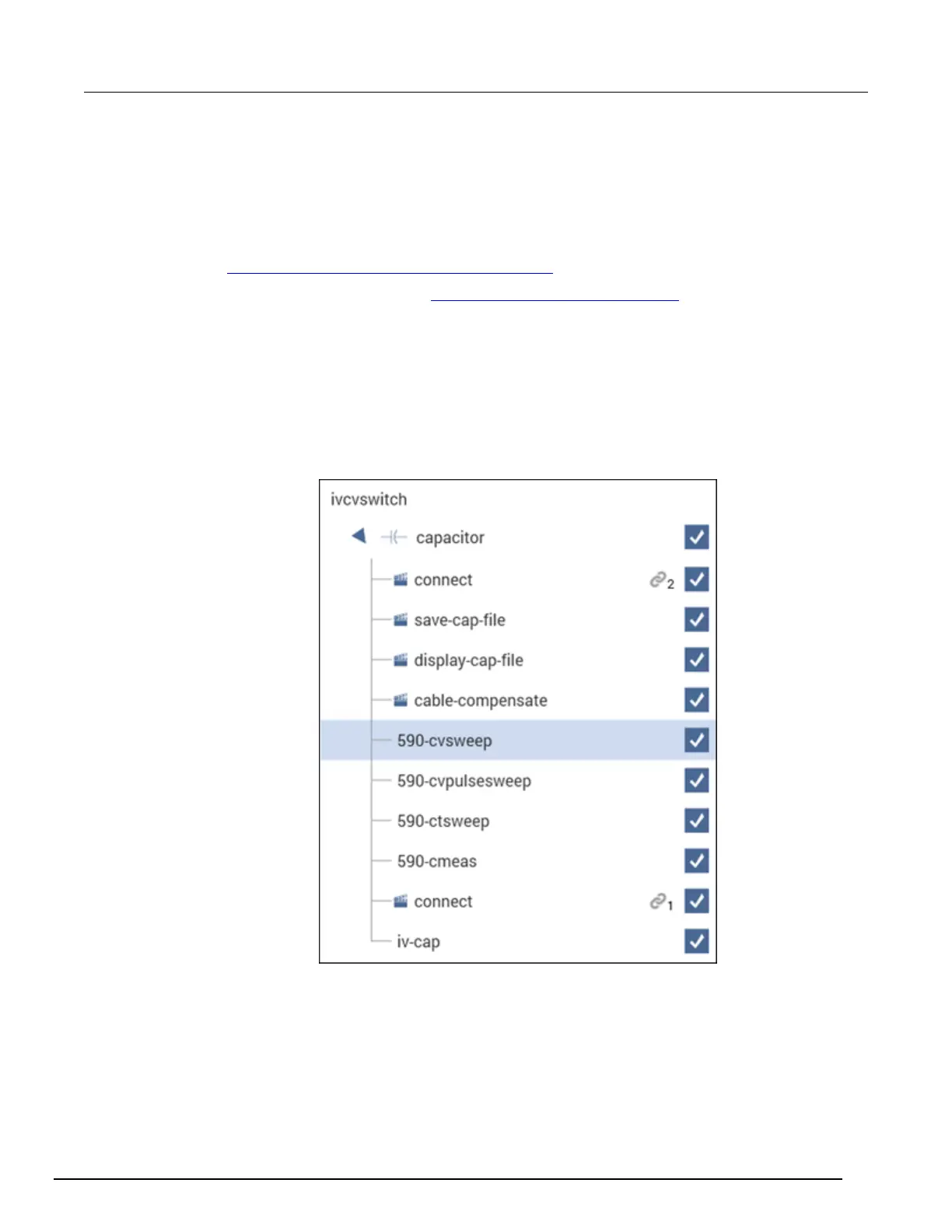

Figure 551: Project tree when ivcvswitch project is selected
