Keithley 4200A-SCS - Example Test Execution Sequence: Probesites Project

Model 4200A
-SCS Parameter Analyzer Reference Manual Appendix F:
Set up a probe station
4200A-901-01 Rev. C / February 2017 F-5
Example test execution sequence: probesites project
Configure the probesites project:
1. In Clarius, select Configure.
2. In the project tree, select probesites.
3. Set the Project Execution Loop Settings as needed for your project. The example below shows
the settings for a project with five sites.

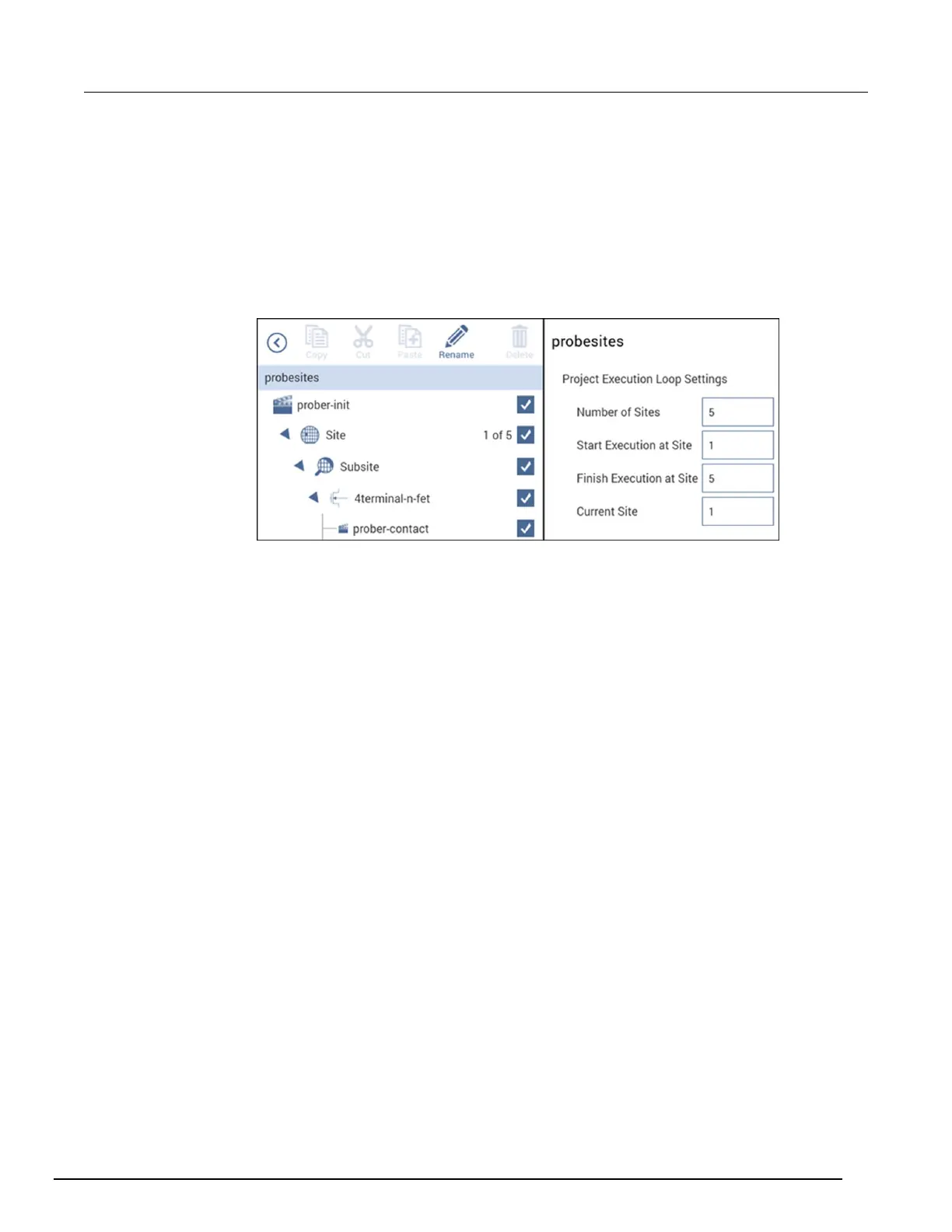

Figure 623: Project Execution Loop Settings
4. Select Run.
5. Select Analyze to review the data.
