Model 4200A

-SCS Parameter Analyzer Reference Manual Section 3: Source-

measure hardware

4200A-901-01 Rev. C / February 2017 3-31

4210-SMU sink boundaries

Nominal 4210-SMU sink boundaries are shown in the next figure. Actual boundaries are 210 V at 105

mA or 21 V at 1.05 A.

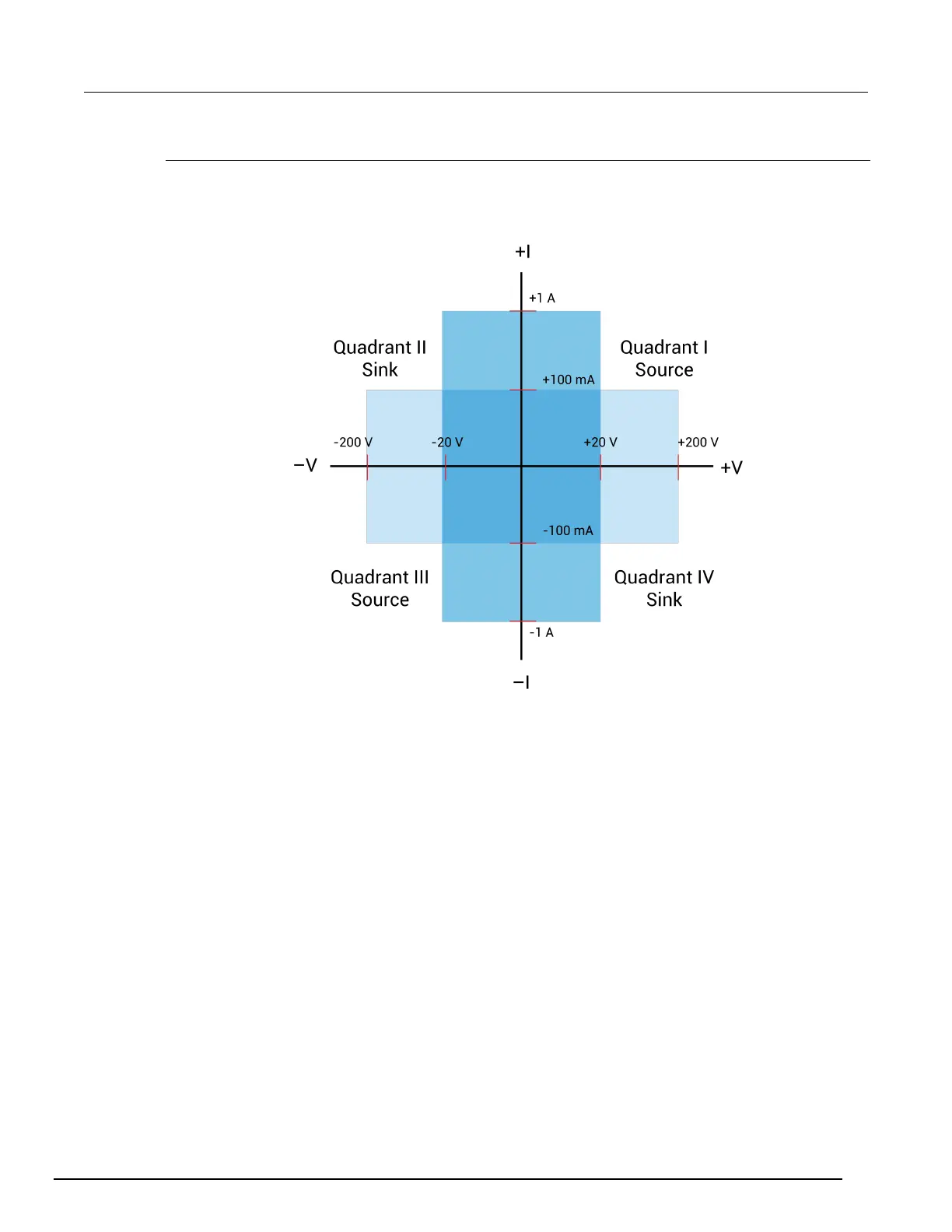

Figure 66: 4210-SMU and 4200-PA operating boundaries

Source-measure considerations

When configured to source current (I-Source), the SMU functions as a high-impedance current

source with voltage limit capability that can measure current (I-Meter) or voltage (V-Meter). The

compliance circuit limits the output voltage to the programmed value.
