-SCS Parameter Analyzer Reference Manual Section 3: Source-
measure hardware
4200A-901-01 Rev. C / February 2017 3-13
Operating boundaries
As with the SMUs alone, adding a 4200-PA preamplifier also allows operation in any of the four
quadrants. The four quadrants of operation for the 4200-PA with the 4200-SMU and 4210-SMU are
shown in the following figures.
4200-SMU with 4200-PA: In the general operating boundaries in the next figure, the 100 mA, 20 V
and 10 mA, 200 V magnitudes are nominal values. The actual maximum output magnitudes of the
4200-SMU and 4200-PA are 105 mA, 21 V and 10.5 mA, 210 V. Note that the boundaries are not
drawn to scale.

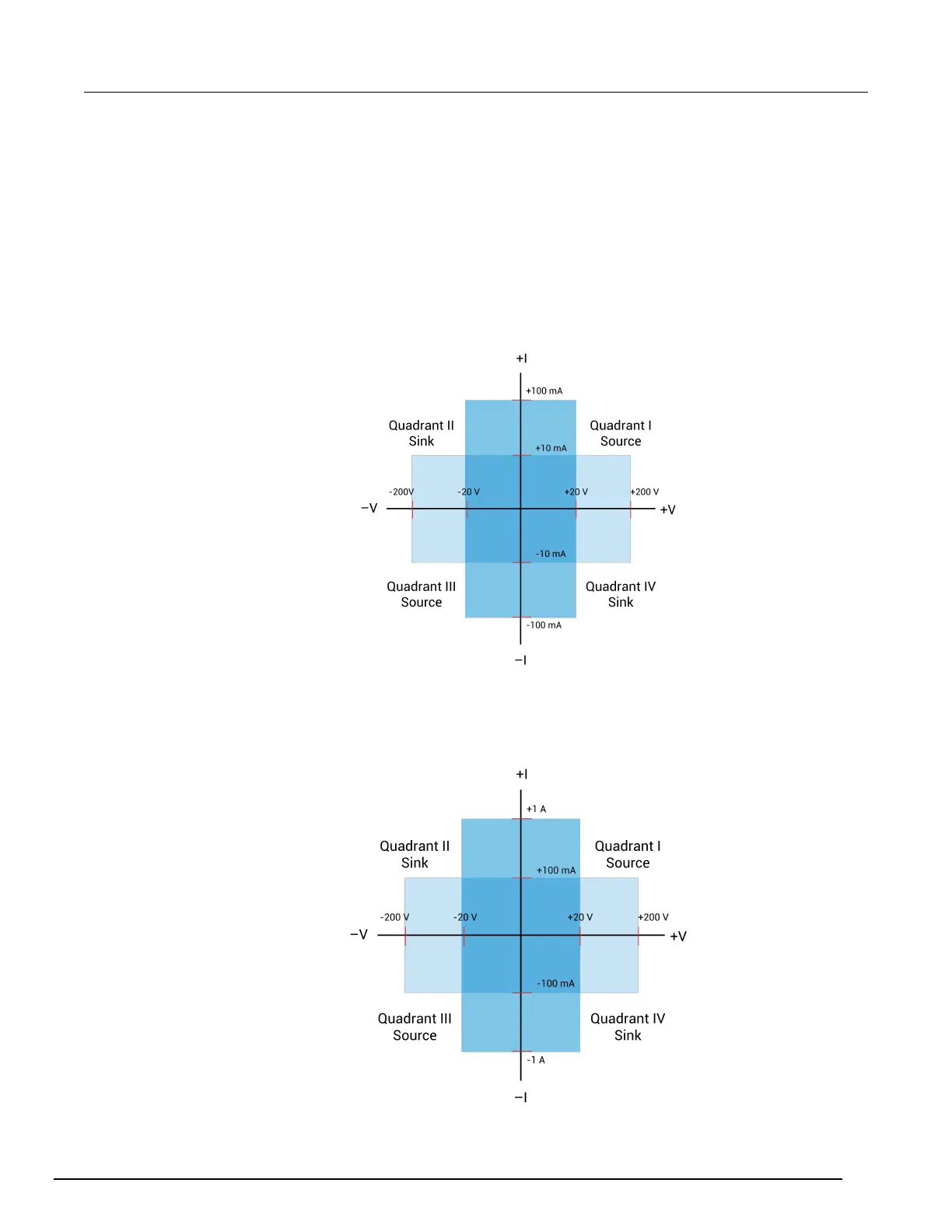

Figure 43: 4200-SMU and 4200-PA operating boundaries
4210-SMU with 4200-PA: In the next figure, the 1 A, 20 V and 100 mA, 200 V magnitudes are
nominal values. The actual maximum output magnitudes of the 4210-SMU and 4200-PA are 1.05 A,
21 V and 105 mA, 210 V. Note that the boundaries are not drawn to scale.
Figure 44: 4210-SMU and 4200-PA operating boundaries
