6: Clarius Model 4200A-SCS Parameter Analyzer
6-182 4200A-901-01 Rev. C / February 2017
Multi-site execution
Running a project runs all the sites that are defined for the project. However, you can run a subset of
the sites if needed.
To run some sites:
1. In the project tree, select the site.
2. Select Configure.
3. Set Start Execution at Site and Finish Execution at Site to the sites you want to run. In the
following example, executing the site will run sites 3, 4, and 5.

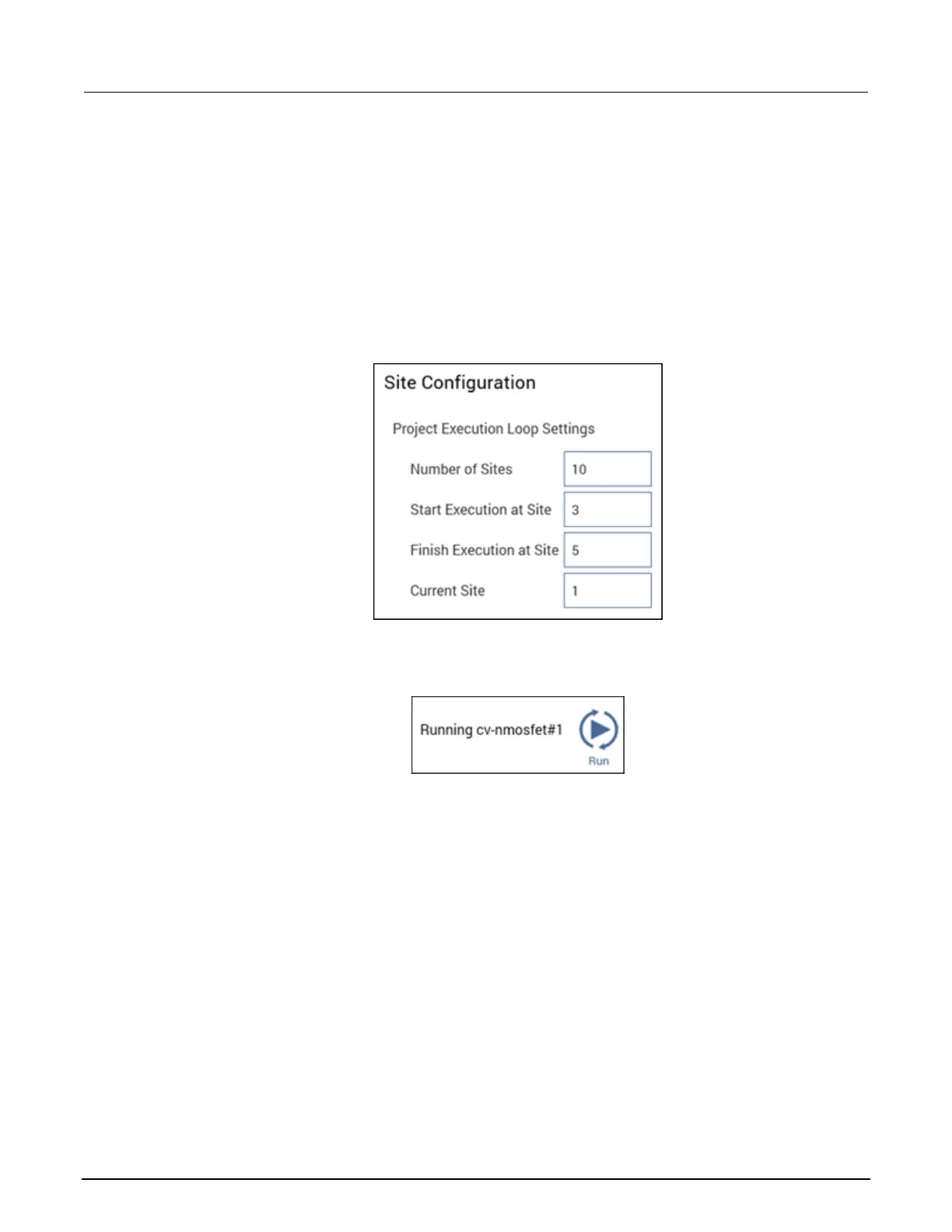

Figure 345: Multi-site test sequence
4. Select Run. The Run icon changes as shown below. The active sites, actions, and tests are listed
to the left of Run as they are executed. The Stop icon changes to red.
Figure 346: Run icon while a test is running
When the site completes, a beep sounds and the run arrows around the Run icon are no longer
displayed.
