Keithley 4200A-SCS Reference Manual

Model 4200A
-SCS Parameter Analyzer Reference Manual Section 6:
Clarius
4200A-901-01 Rev. C / February 2017 6-15
Run a simple test
When you select Run, tests and actions at a lower level than the highlighted item in the project tree
are executed if they are selected, from top to bottom in the project tree. If you want to run an entire
project, make sure the project name is highlighted. Running a project saves the configuration settings
and the existing run history of the project.
In the following example, when you select Run, the following occurs:
• The vce-ic test runs.
• The gummel test runs.
• The vcsat test is skipped.
• The vds-id test runs.

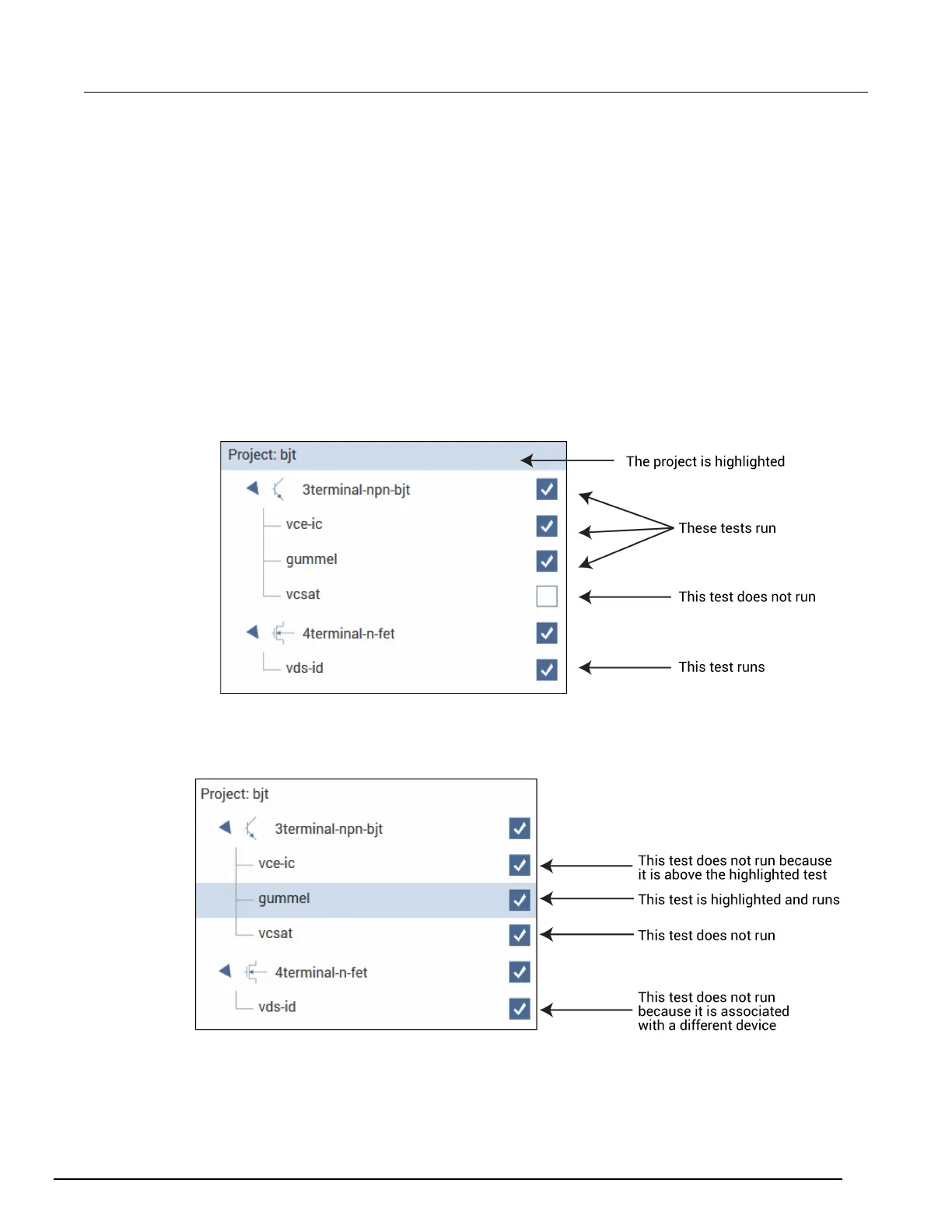

Figure 222: Run a test at the project level
In the following example, only the gummel test runs. Even though the other tests are selected, they
are not below the gummel test in the hierarchy.
Figure 223: Run specific tests
