5: Pulse measure and pulse generator units Model 4200A-SCS Parameter Analyzer
5-32 4200A-901-01 Rev. C / February 2017
Perform connection compensation
To compensate for connections:
1. In Clarius, select Tools. The Clarius Tools dialog box opens.

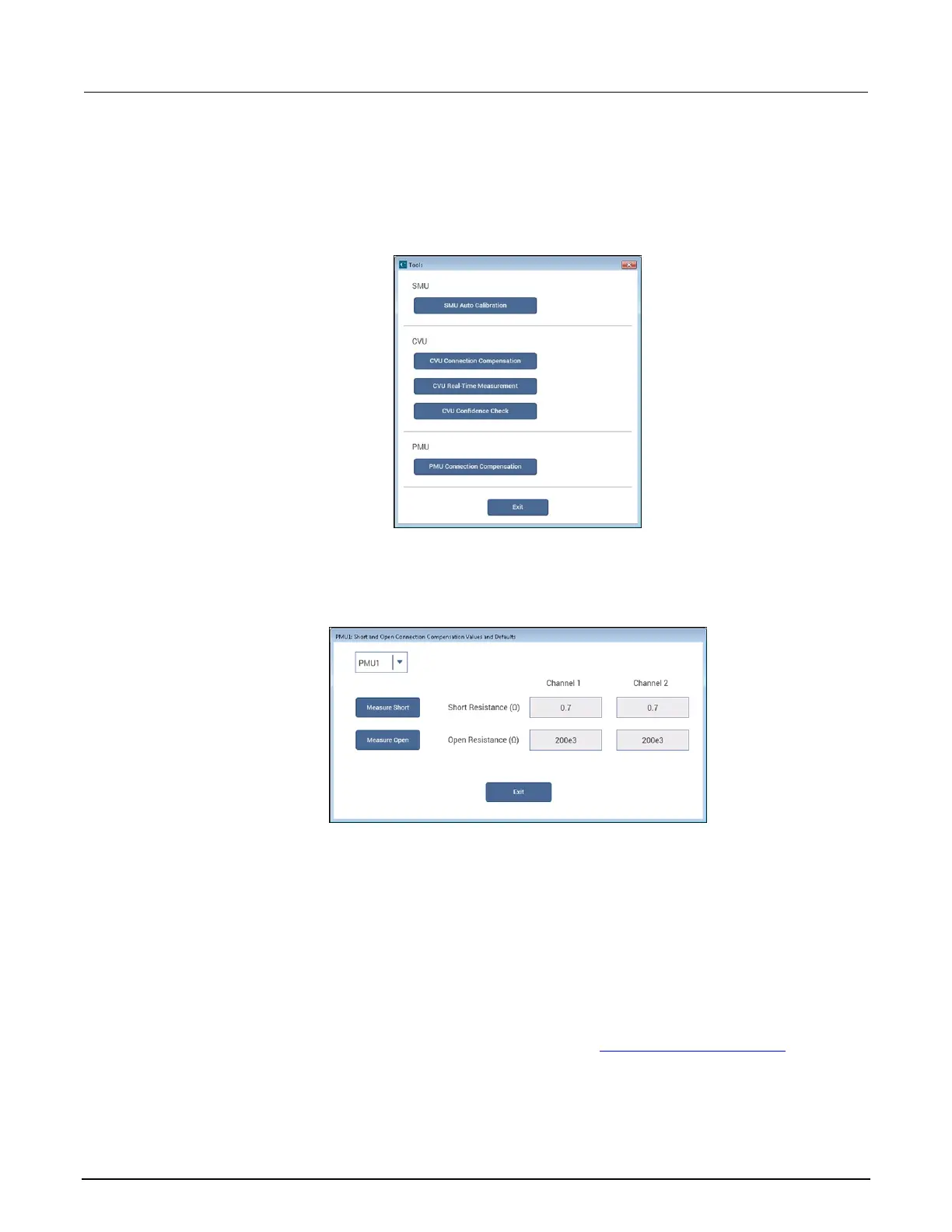

Figure 170: Clarius Tools dialog box
2. Select PMU Connection Compensation. The Short and Open Connection Compensation
Values and Defaults dialog box opens.
3. Select the PMU.
Figure 171: PMU Connection Compensation dialog box
4. Select Measure Short.
5. Follow the on-screen instructions or replace the DUT in the test fixture with a short. The results
are displayed when compensation is complete. If an error occurred, it is displayed in the Clarius
Messages area.
6. Select Measure Open.
7. Follow the on-screen instructions. The results are displayed when compensation is complete. If
an error occurred, it is displayed in the Clarius Messages area.
The compensation data is displayed in the Open and Short Connection Compensation Values and
Defaults dialog box.
If your test setup used both PMU channels (example shown in Using the RPM as a switch (on page
5-8) figure), you will have new custom data for both channels.
