Appendix

G: Using a Cascade Microtech PA200 Prober Model 4200A-SCS Parameter Analyzer

Reference Manual

G-6 4200A-901-01 Rev. C / February 2017

Set up communications on the prober

You can configure the PA-200 prober for serial or GPIB communication. Ensure that the prober is set

up for the type of communications interface that is defined on the 4200A-SCS (see

Set up

communications on the 4200A-SCS (on page G-4)).

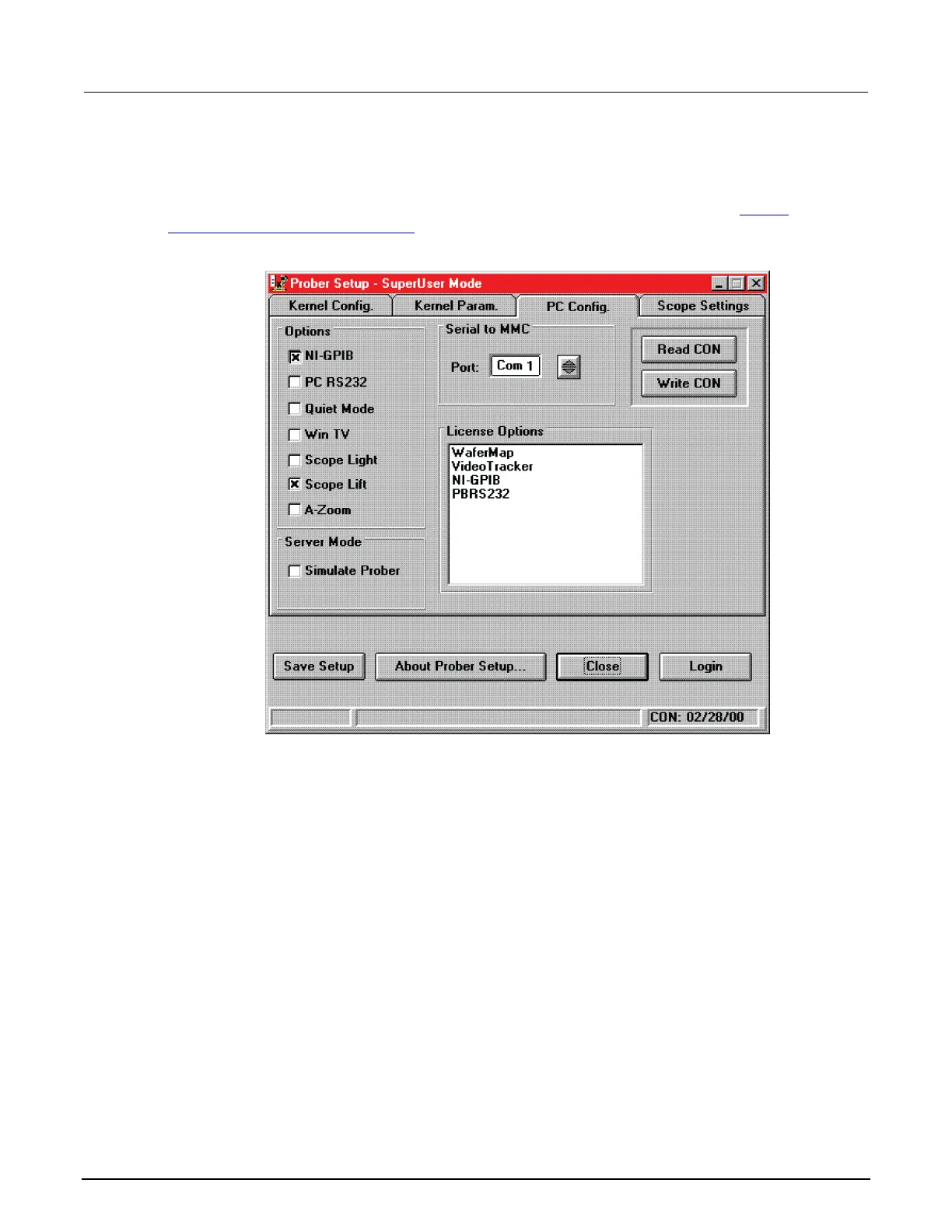

Figure 635: Prober setup: PC Config tab
