H: Using a Micromanipulator 8860 Prober Model 4200A-SCS Parameter Analyzer
H-26 4200A-901-01 Rev. C / February 2017
3. Select Probe Station.
4. Select OK. The KCon navigation displays PRBR1 in the Configuration Navigator and t
he
pr
operties.

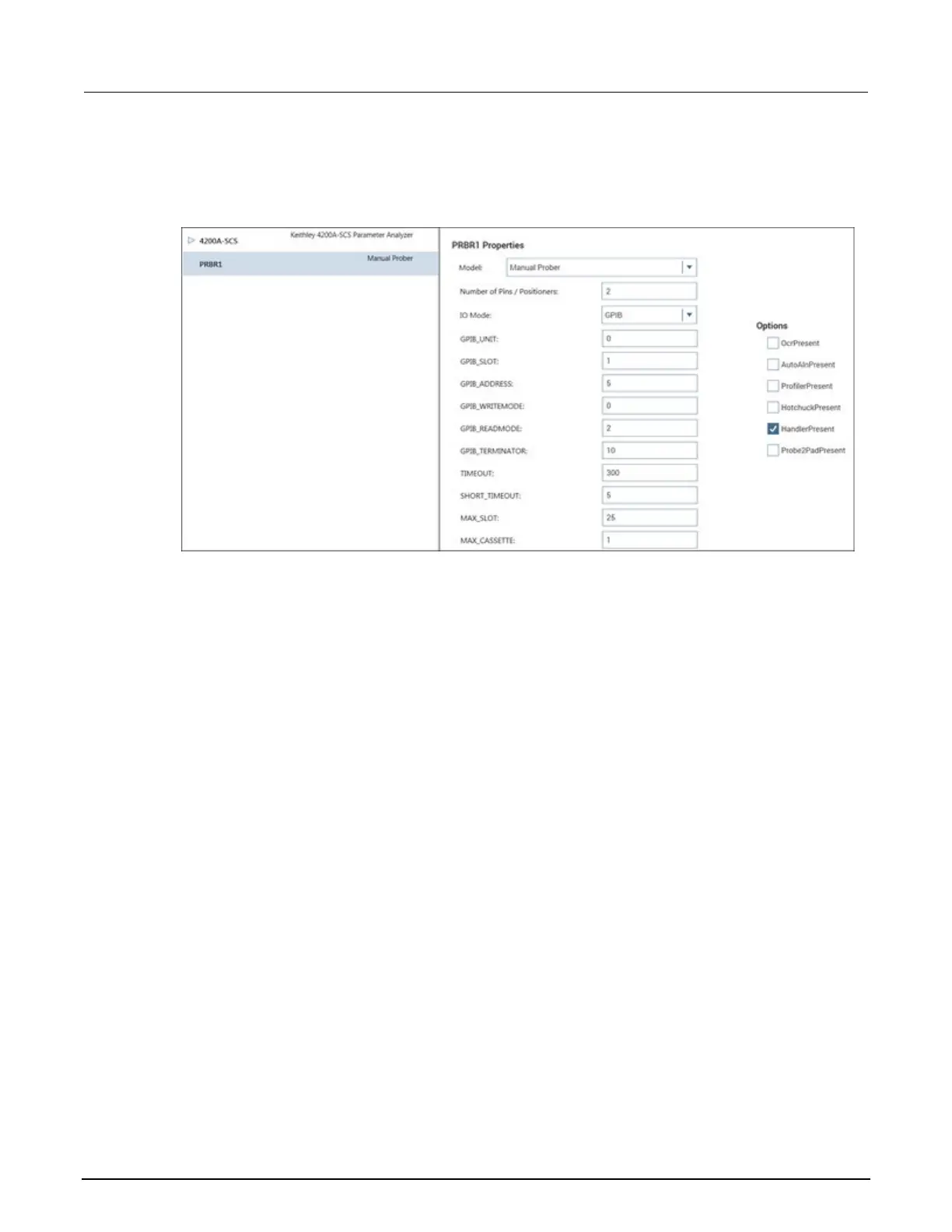

Figure 723: Use KCon to select a prober
5. Select the Micromanipulator 8860 Prober as the model.
6. Ensure that the Number of Pins / Positioners is correct. The number of pins defined her
e
det
ermines the pins that are available to assign to a switch matrix card column.
7. Select Save.
Clarius
Use Clarius to load and run the probesites or probesubsites project using the new KCon
c
onfiguration file, which allows you to execute the project for this prober.
On the 4200A-SCS:
1. Open Clarius.
2. Choose Select.
3. Select Projects.
4. Search for probesubsites.
5. Drag the probesubsites project to the project tree.
