Reset defaults
On the main screen of the UTM UI Editor, there is a Reset Defaults button (refer to the figure in
UTM
UI Editor (on page 6-137)). Select this button to overwrite the settings for the user module with the
factory defaults from the original UTM UI definition file. If there is no original definition for the user
module, one is dynamically generated.
Copy or move UTM UI definitions
The UTM UI definition consists of one file for each user library. Use the kultcopy command to move
a user library to another 4200A-SCS. This command copies the user modules (c code), UTM UI
definition (XML files), and any bitmaps for the UTM UI (bitmapped files with the .bmp extension). For
more information, see kultcopy in Copying user libraries using kultcopy (on page 8-50
).
Link tests or actions
You can use the Linked Copy option to insert multiple instances of test or action in the project tree.
When ITMs are linked, Clarius automatically keeps the configurations of the linked ITMs identical.
This allows you to have multiple tests that perform identically. When UTMs or actions are linked, the
user libraries, user modules, Formulator formulas and constants are identical. Note that parameter
settings are not identical for linked UTMs or actions.
When tests are linked, the tests in the project tree display a chain-link icon, as shown in the following
figure.

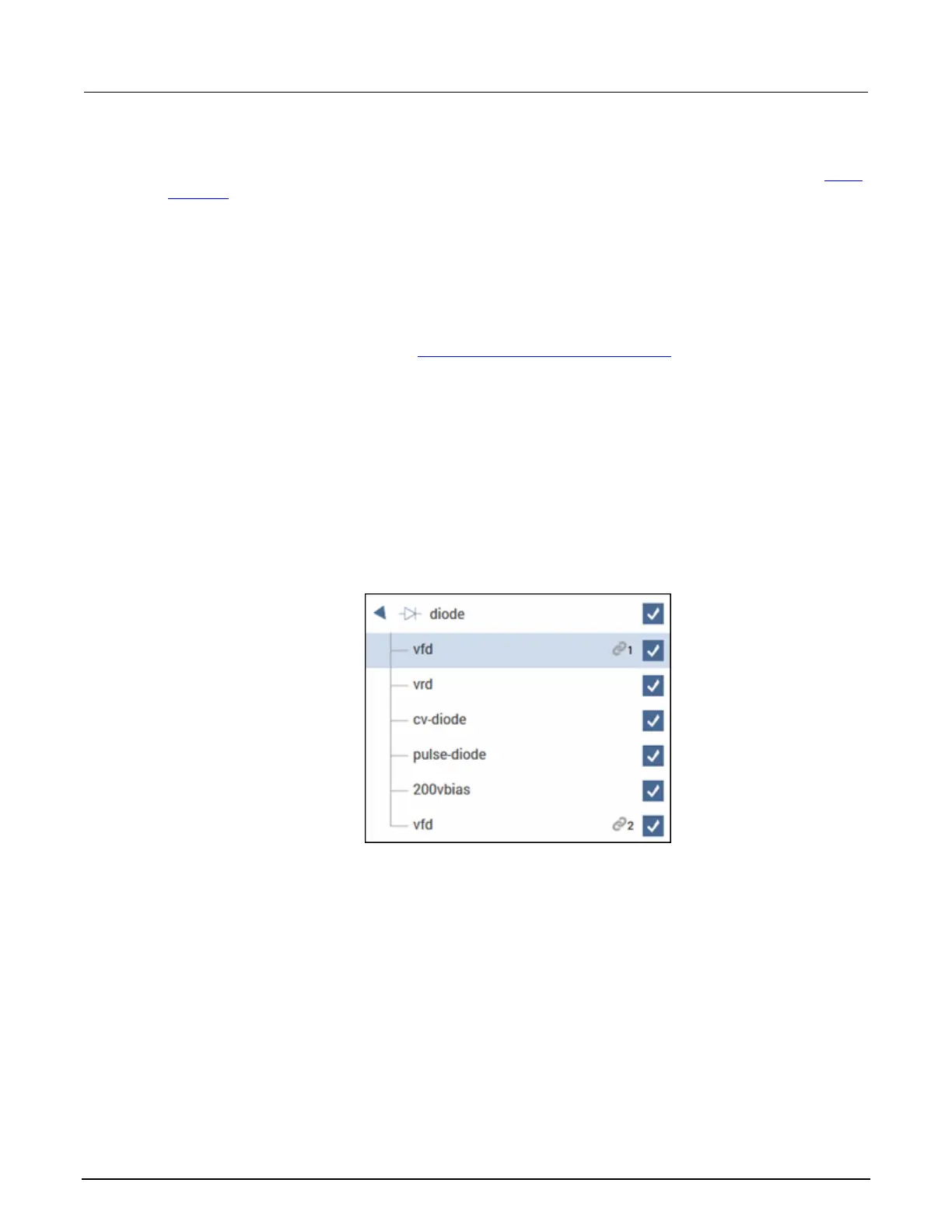

Figure 303: Linked ITMs in the project tree
When using linked copies:
• For ITMs, the settings in the Configure pane (including Formulator formulas and Output Values)
are kept in synchronization. When you change a setting in once instance of a linked test, all of the
linked tests are changed.
• For UTMs and actions, the user libraries, user modules, Formulator formulas and constants, and
Output Values are identical between the tests. Parameter settings can be different.
• The data for each linked test remains independent. The Analyze Run, Calc, and Settings sheet
and Analyze graph and graph settings for each linked test are different.
