-SCS Parameter Analyzer Reference Manual Section 6:
4200A-901-01 Rev. C / February 2017 6-139

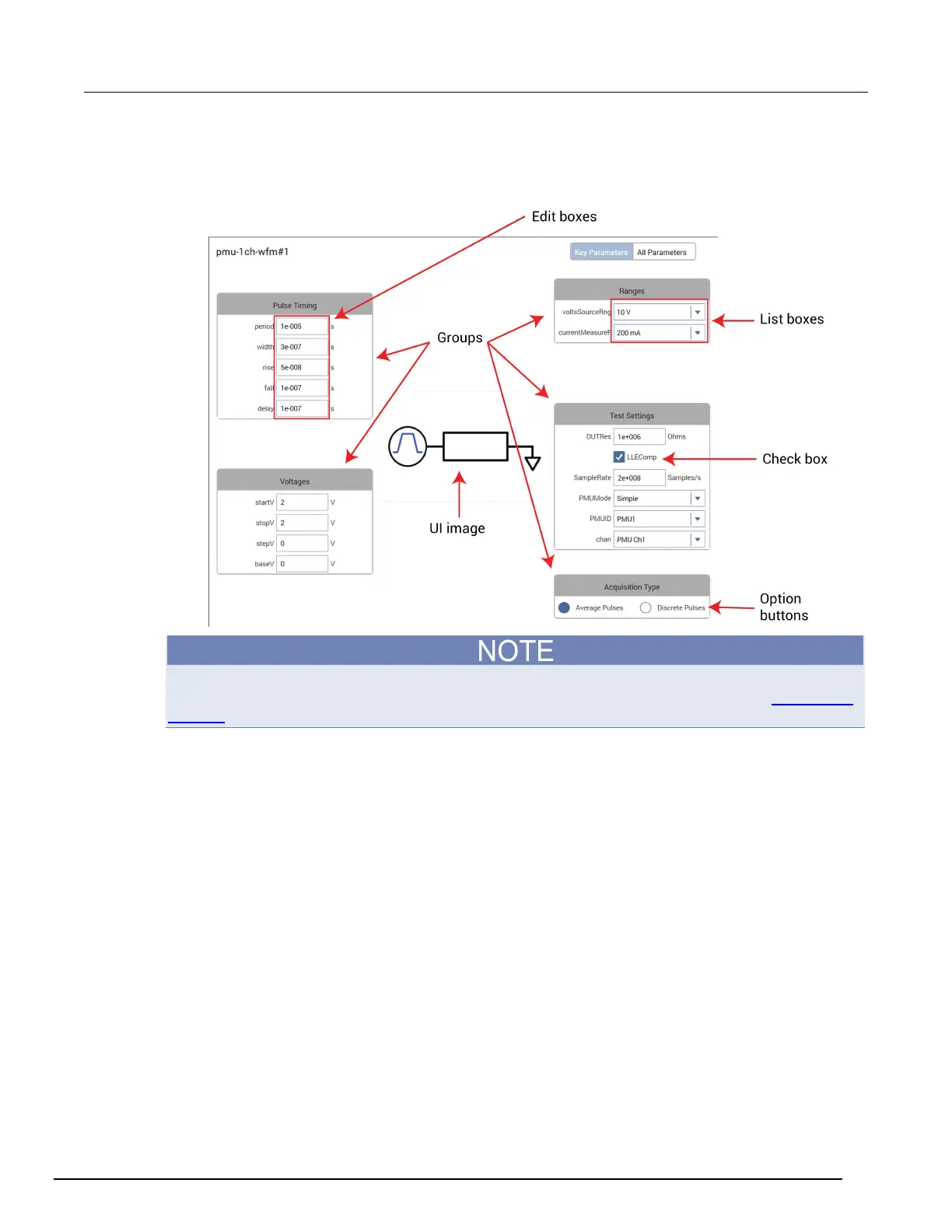

The following figure illustrates some of the available controls for the UTM UI view, including groups,
edit boxes, list boxes, and check boxes. These controls are configured in the UTM UI Editor.
Figure 302: GUI view element sample
The user module defines the Test Description content in the KULT description tab. You cannot use
the UTM UI Editor to define the Test Description content. For more information, see the Description
tab area (on page 8-7) in KULT.
UTM UI definition file information
The UTM UI Definition is stored as an XML file in the source directory of the user library. There are
two possible files for the definition: factory and user. The factory file has the file name
user_module_name_GUI_Config.xml. For example, one factory UTM UI file is
PMU_examples_ulib_GUI_Config.xml. The user UI file name format is
user_module_name_User_GUI_Config.xml. Both files are in the src directory of the user
module.
For example, for the above example PMU_examples_ulib, the XML files are stored in the directory
C:\s4200\kiuser\usrlib\PMU_examples_ulib\src.
The factory file stores UTM UI definitions for all user modules in the user library. Modifying a UTM UI
for a user module that has a factory UTM UI will automatically create a user XML file. If a user
definition exists for a user module, it is used for the UTM UI. For UI definitions that are provided with
the 4200A-SCS, there is a factory file. If a user module does not have a factory UTM UI definition,
creating a definition will create a user file. Do not modify the XML files outside of the UTM UI Editor,
as errors or non-functional UTM UI definitions may result.
