J: Using a Cascade Summit-12000 Prober Model 4200A-SCS Parameter Analyzer
Reference Manual
J-26 4200A-901-01 Rev. C / February 2017
6. Make sure the Number of Pins / Positioners is correct. The number of pins defined here
determines the pins that are available to assign to a switch matrix card column.
7. Select Save.
8. Exit KCon.
Clarius
Use Clarius to load and run the probesites or probesubsites project using the new KCon
configuration file, which allows you to execute the project for this prober.
On the 4200A-SCS:
1. Open Clarius.
2. Choose Select.
3. Select Projects.
4. Search for probesubsites.
5. Drag the probesubsites project to the project tree.

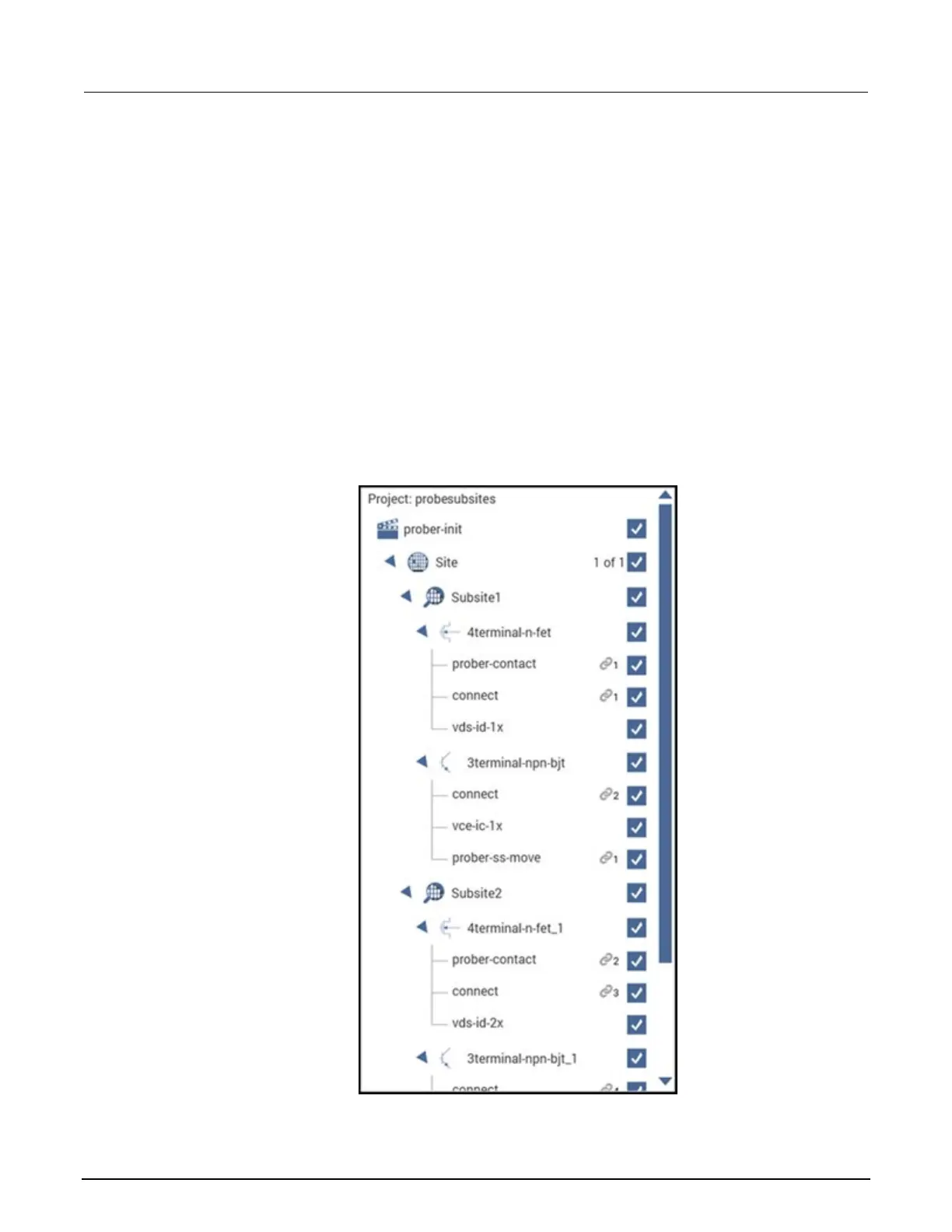

Figure 788: probesubsites project tree
6. Click Run.
