F: Set up a probe station Model 4200A-SCS Parameter Analyzer Refe
F-16 4200A-901-01 Rev. C / February 2017
Test system connections
A typical test system for this tutorial is shown in the following figure. The 4200A-SCS and probe
station are connected to a 7174A matrix card. The matrix card is installed in the switch matrix, and
the switch matrix and probe station are controlled through the GPIB bus.

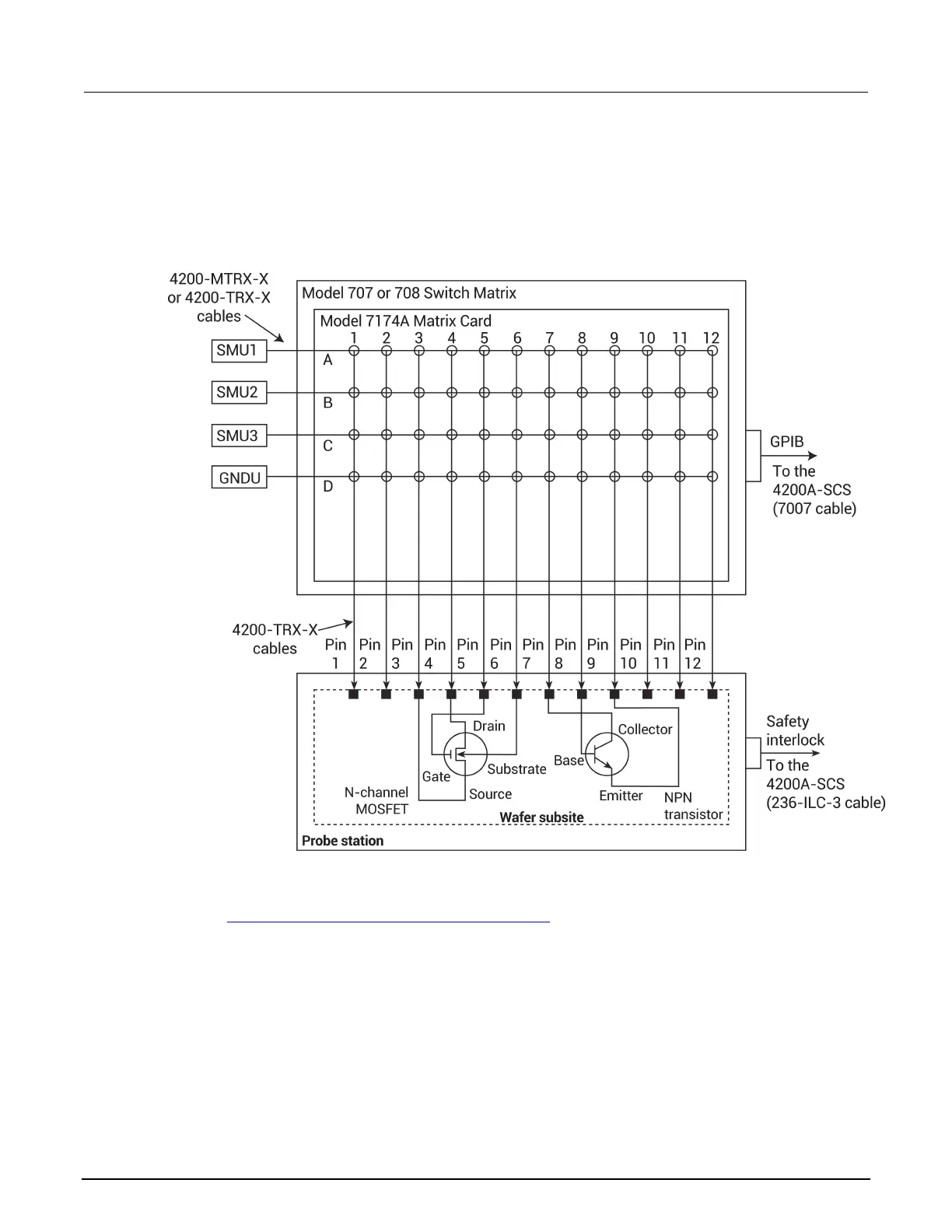

Figure 630: System configuration for the probesubsites project
KCon setup
Refer to Use KCon to add a switch matrix to the system (on page A-24).
