Use KCon to add a prober
On the 4200A-SCS, use KCon to add the prober to the configuration:
1. Open KCon.
2. At the bottom of the Configuration Navigator, select Add External Instrument. The Add External
Instrument dialog box is displayed.

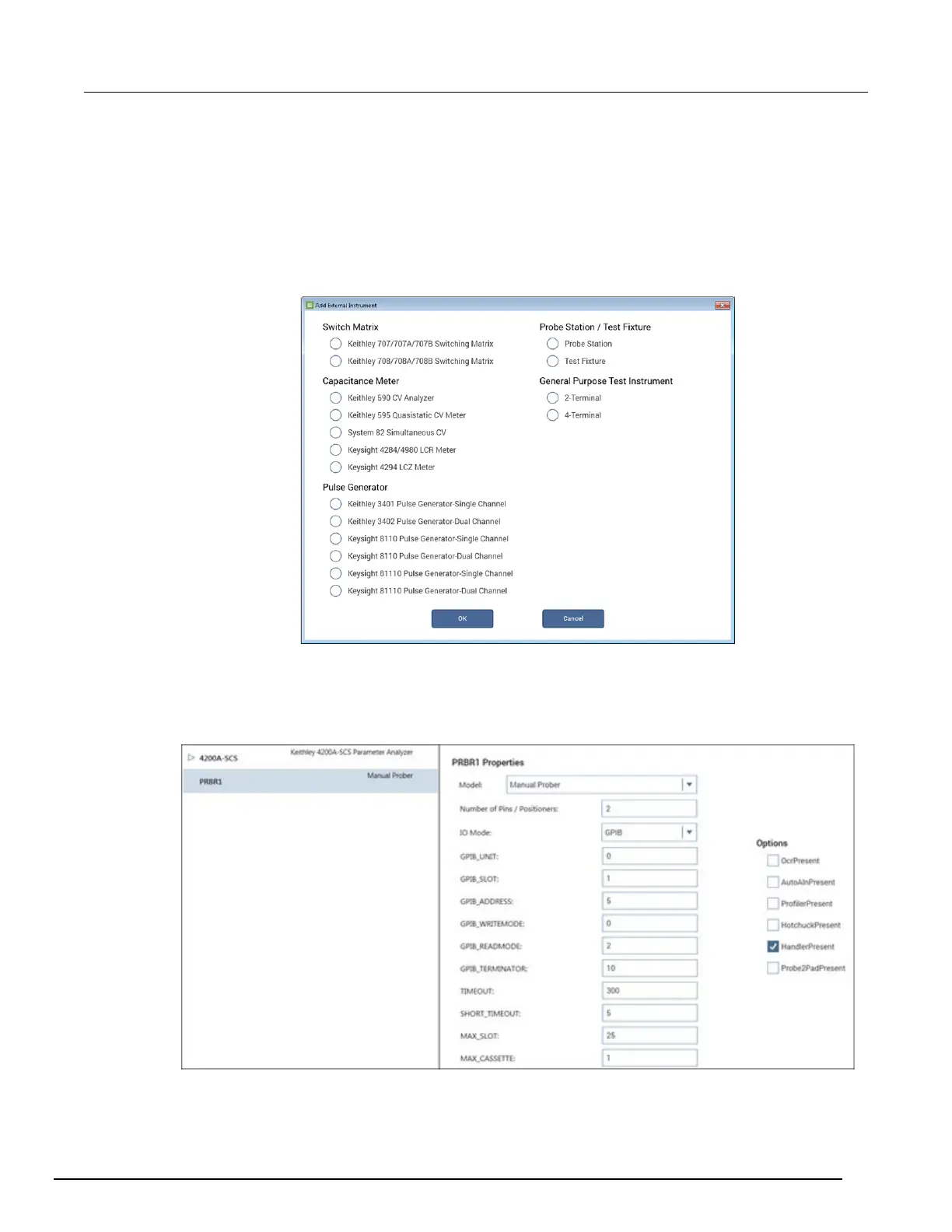

Figure 786: Add a prober in KCon
3. Select Probe Station.
4. Select OK. The KCon navigation displays PRBR1 in the Configuration Navigator and the
properties.
Figure 787: Use KCon to select a prober
5. Select the Cascade prober as the model.
