J: Using a Cascade Summit-12000 Prober Model 4200A-SCS Parameter Analyzer
J-24 4200A-901-01 Rev. C / February 2017
7. Enter the corresponding X and Y offset of the new subsite.

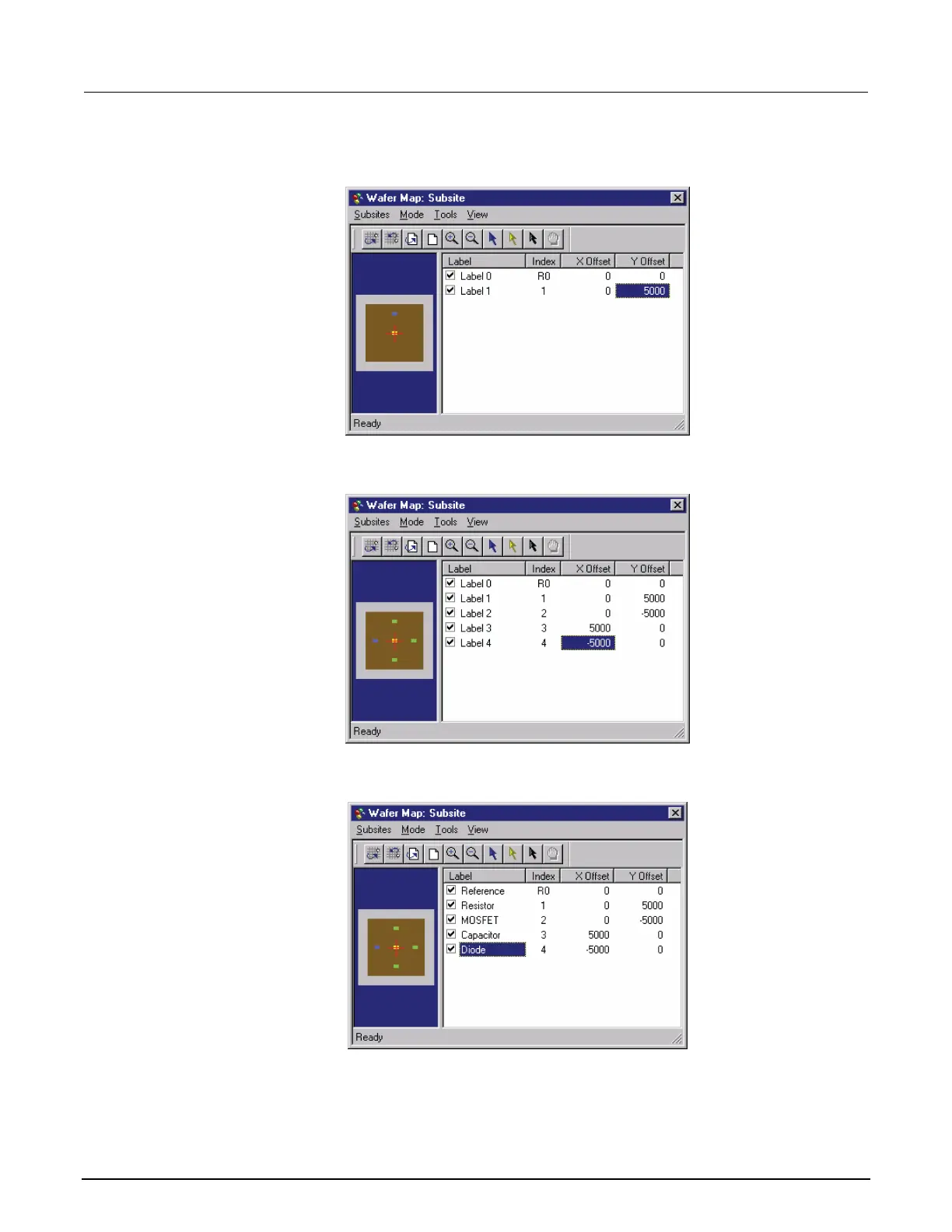

Figure 783: Enter x and y offset
8. Continue to add new subsites until finished.
Figure 784: Make four new subsites
9. Click the label name and type in a new description to relabel each subsite.
Figure 785: Relabel the subsites
10. To choose a subsite for testing, select the box at the front of each label. To skip testing the
subsite, clear the box at the front of each label.
11. Click File > Save on the Wafer Map dialog box to save the wafer map.
