Keithley 4200A-SCS Reference Manual

Model 4200A
-SCS Parameter Analyzer Reference Manual Section 4: Multi-frequency capacitance-
voltage unit
4200A-901-01 Rev. C / February 2017 4-21
4210-CVU project example
The following example shows you how to use the 4210-CVU in a project to make a capacitance
measurement.
The example assumes you have a 4210-CVU connected to a test fixture as described in
Typical
4210-CVU test connections to a DUT (on page 4-6).
In this test, you sweep the DC bias from −5 V to 5 V in 0.2 V steps, with a 1 MHz capacitance
measurement made at each step.
Select a project
Select a project:
1. Start Clarius.
2. Do Connection compensation (on page 4-10
) to correct for offset and gain errors caused by the
connections.
3. Choose Select.
4. Select Projects to display the Project Library in the center pane.

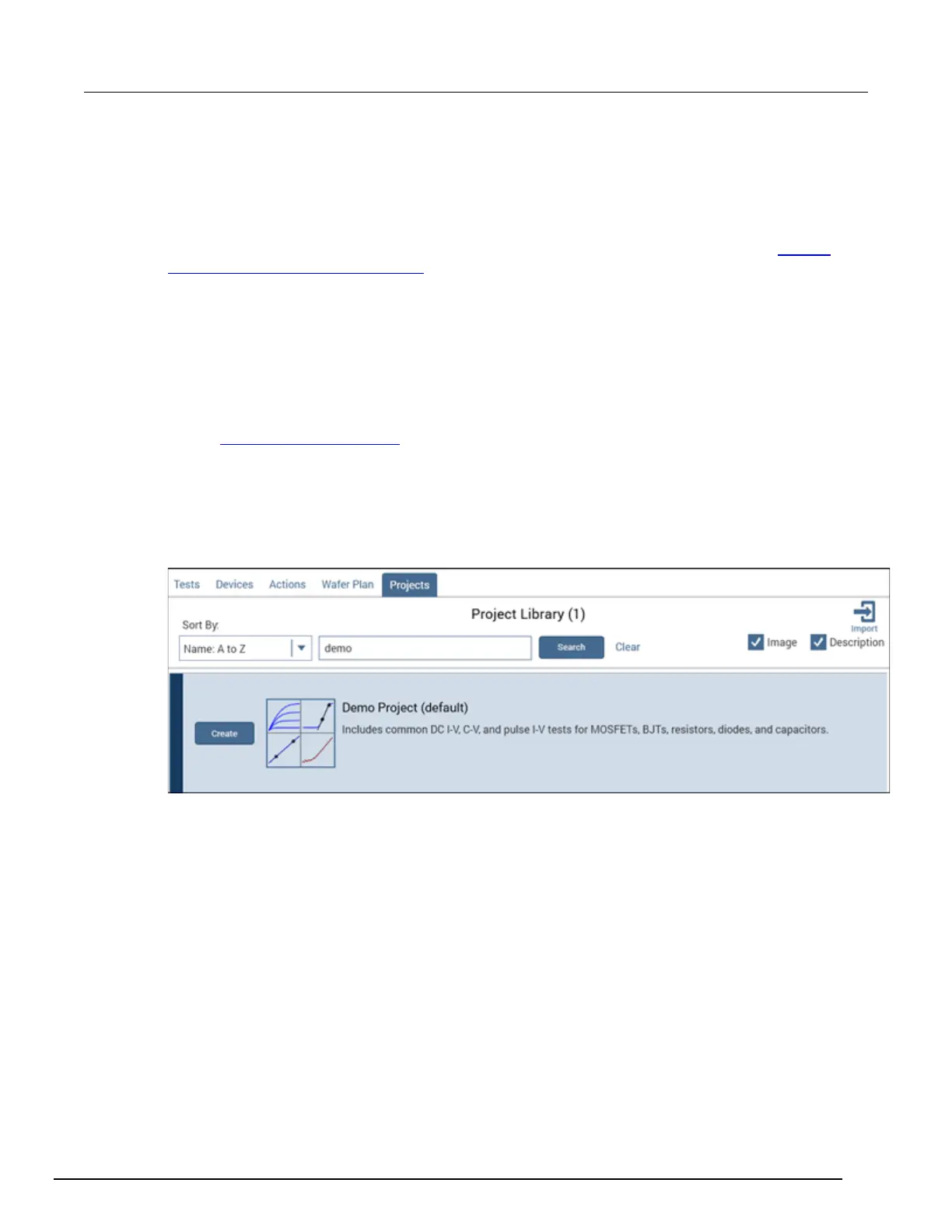

5. Search for demo. The Demo Project is displayed, as shown in the next figure.
Figure 100: Demo Project selected
