4: Multi-frequency capacitance-voltage unit Model 4200A-SCS Parameter Analyzer

Reference Manual

4-22 4200A-901-01 Rev. C / February 2017

6. Select Create. You are prompted to replace the existing project.

7. Select Yes. The project is displayed in the project tree.

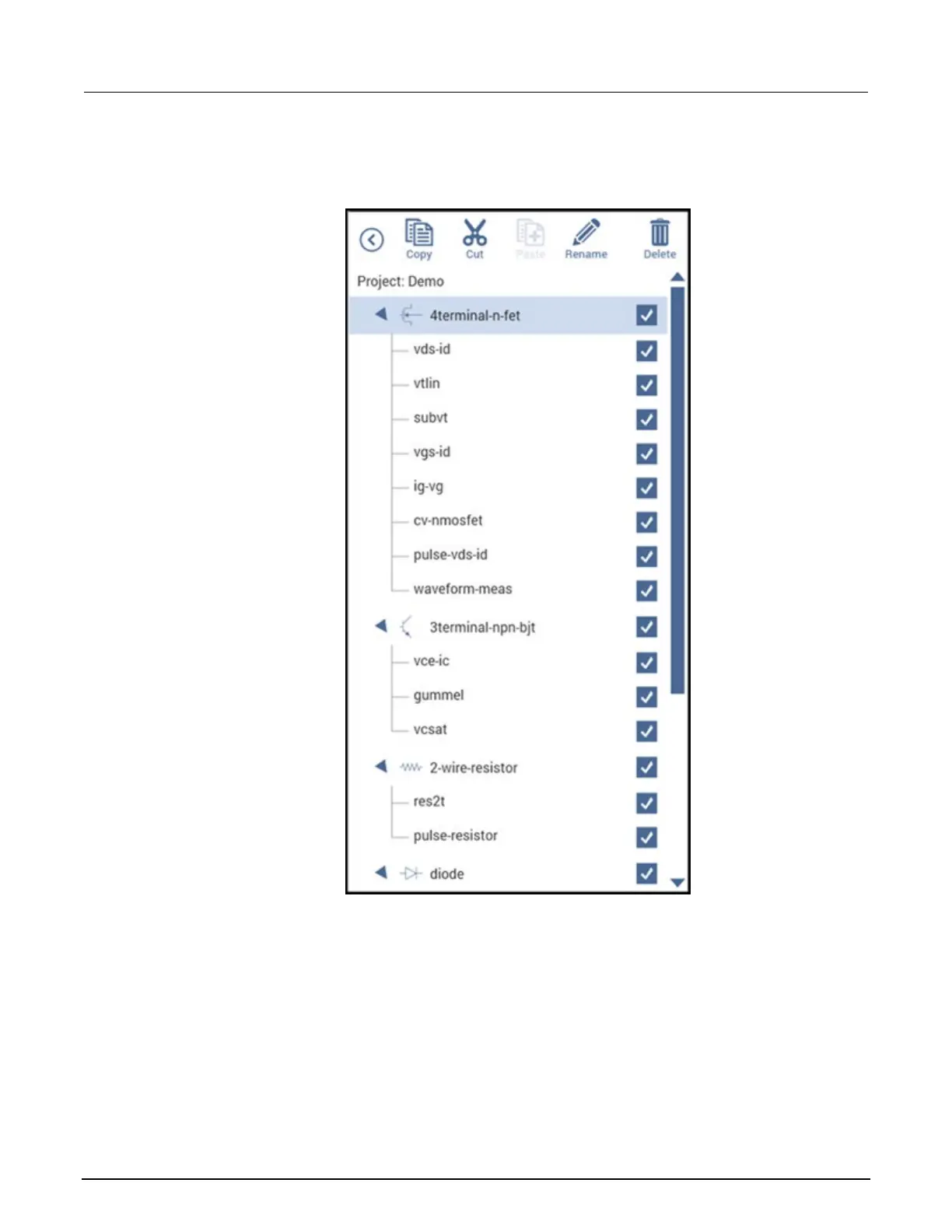

Figure 101: Demo Project in the project tree
