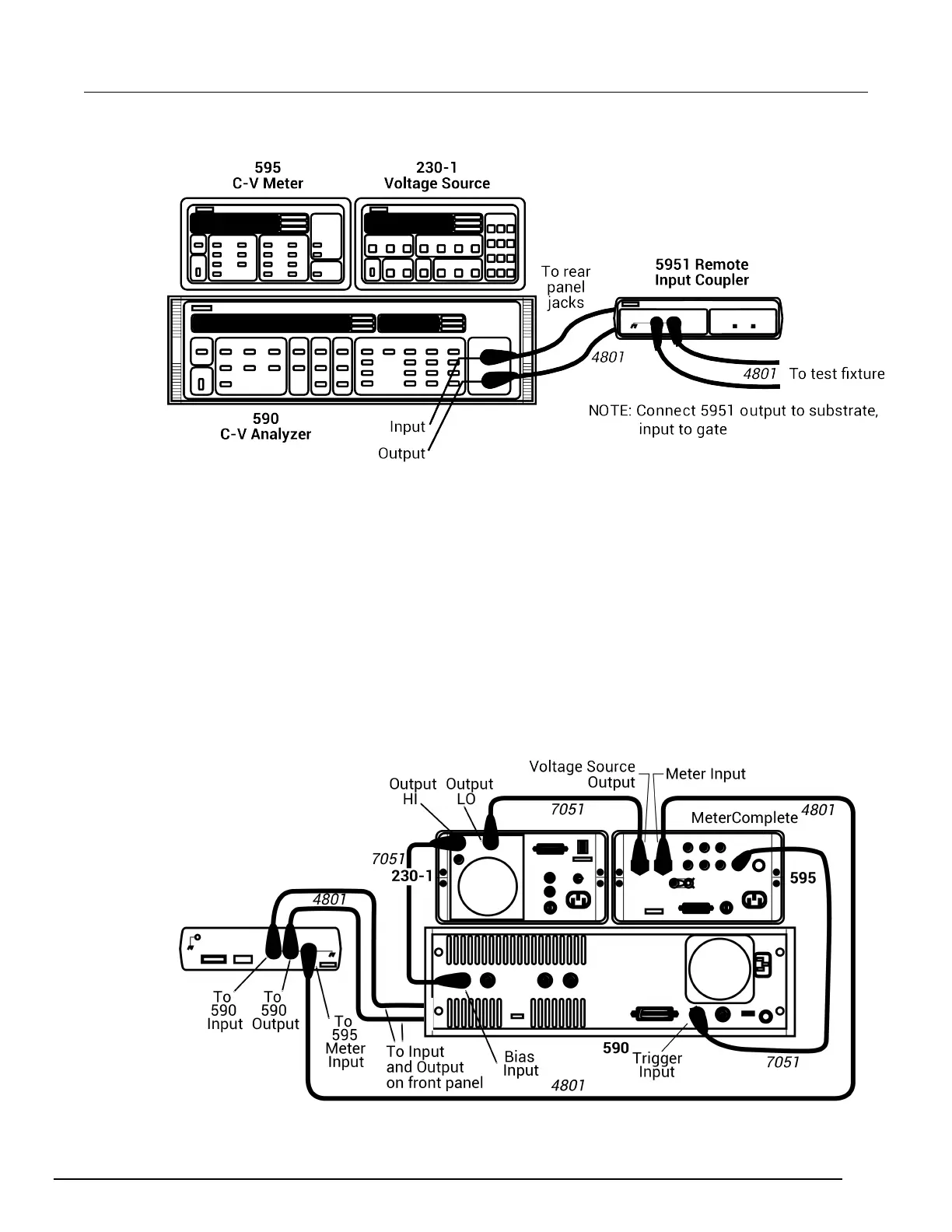

Figure 582: System 82 C-V system front-panel connections
Rear-panel connections
The rear-panel connections diagram below shows the rest of the main cabling configuration.
To make rear-panel connections:
1. Use a Model 4801 cable to connect the METER INPUT on the back of the Model 595 to the TO
595 INPUT on the Model 5951.
2. Use a Model 7051-2 BNC cable to connect the METER COMPLETE port on the back of the
Model 595 to the TRIGGER INPUT on the back of the Model 590
3. Use a Model 7051-2 cable and connect the OUTPUT HI on the back of the Model 230-1 to the
BIAS INPUT on the back of the Model 590.
4. Use a Model 7051-2 BNC cable to connect the OUTPUT LO on the back of the Model 230-1 to
the VOLTAGE SOURCE OUTPUT on the back of the Model 595.
Figure 583: System 82 C-V system rear-panel connections
