Keithley 4200A-SCS Reference Manual

Section
10: KPulse (for Keithley Pulse Cards) Model 4200A-SCS Parameter Analyzer
Reference Manual
10-8 4200A-901-01 Rev. C / February 2017
Exporting Segment Arb waveform files
After configuring a Segment Arb
®
waveform in KPulse, you can save it as a .ksf file. The Segment
Arb .ksf files should be exported into the SarbFiles folder at the following location:
C:\s4200\kiuser\KPulse\SarbFiles
To export a Segment Arb waveform file:
1. Select Tools.
2. Select Export Segment Arb to open the Segment Arb Export dialog box.

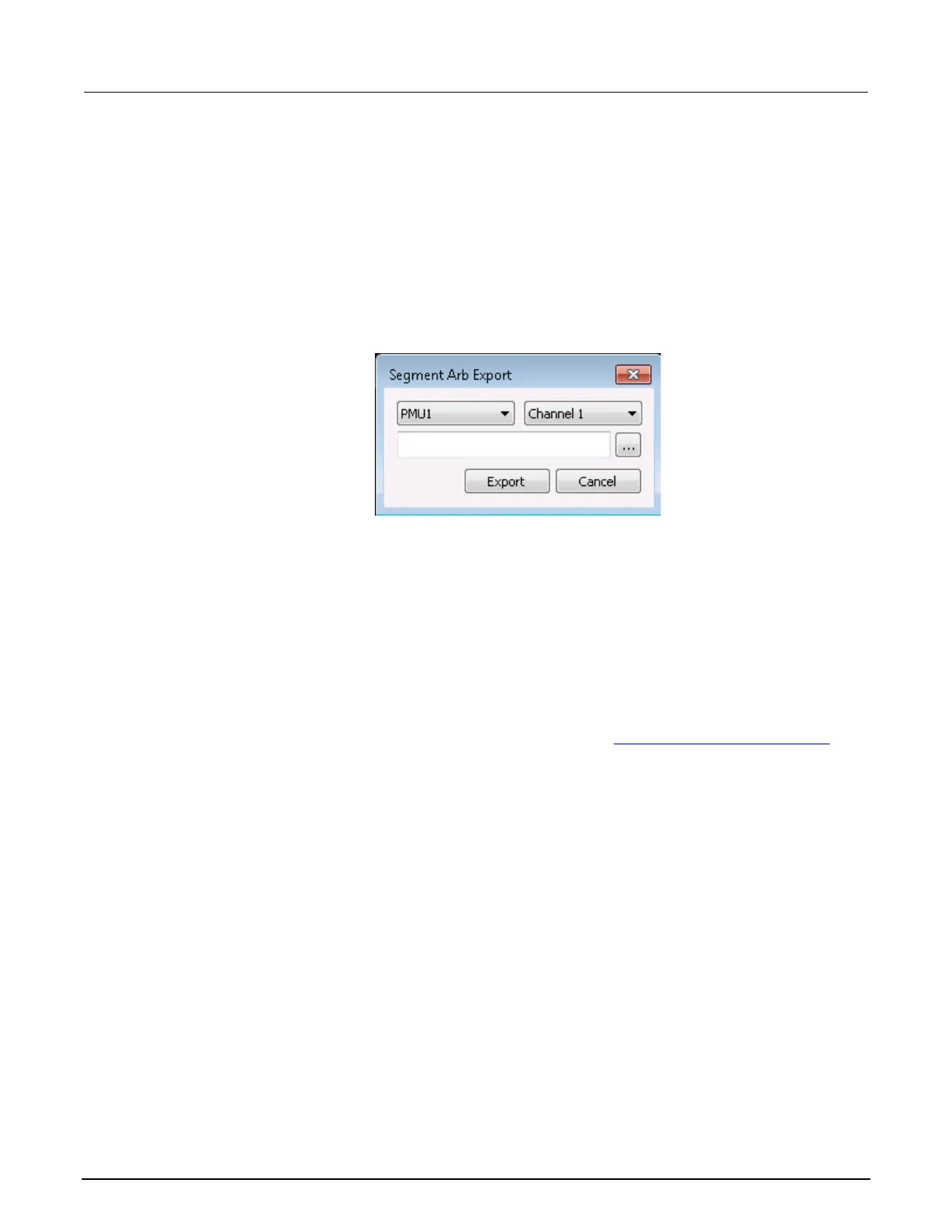

Figure 473: Segment Arb Export dialog box
3. Select the pulse card and channel for the waveform to be exported.
4. Select ....
5. Locate the target folder.
6. Type a name for the file. The .ksf extension is added automatically.
7. Select Open.
8. Select Export.
You can import a saved seg_arb.ksf waveform file into the pulse card using the seg_arb_file
function.
For segment stress/measure testing, you can import the .ksf file through the Clarius Configure
pane. For details about segment stress/measure testing, refer to Segment stress/measure mode
(on
page 6-170, on page 6-175).
