Keithley 4200A-SCS Reference Manual

Model 4200A
-SCS Parameter Analyzer Reference Manual Section 6:
Clarius
4200A-901-01 Rev. C / February 2017 6-175
Set the segment stress/measure mode Subsite Stress Properties
The following topics describe the options that are available when you are setting the properties for the
Segment Stress/Measure Mode.
The test sequence for the Segment Stress/Measure Mode is the same as the test sequence for the
basic Stress/measure mode (on page 6-189
).

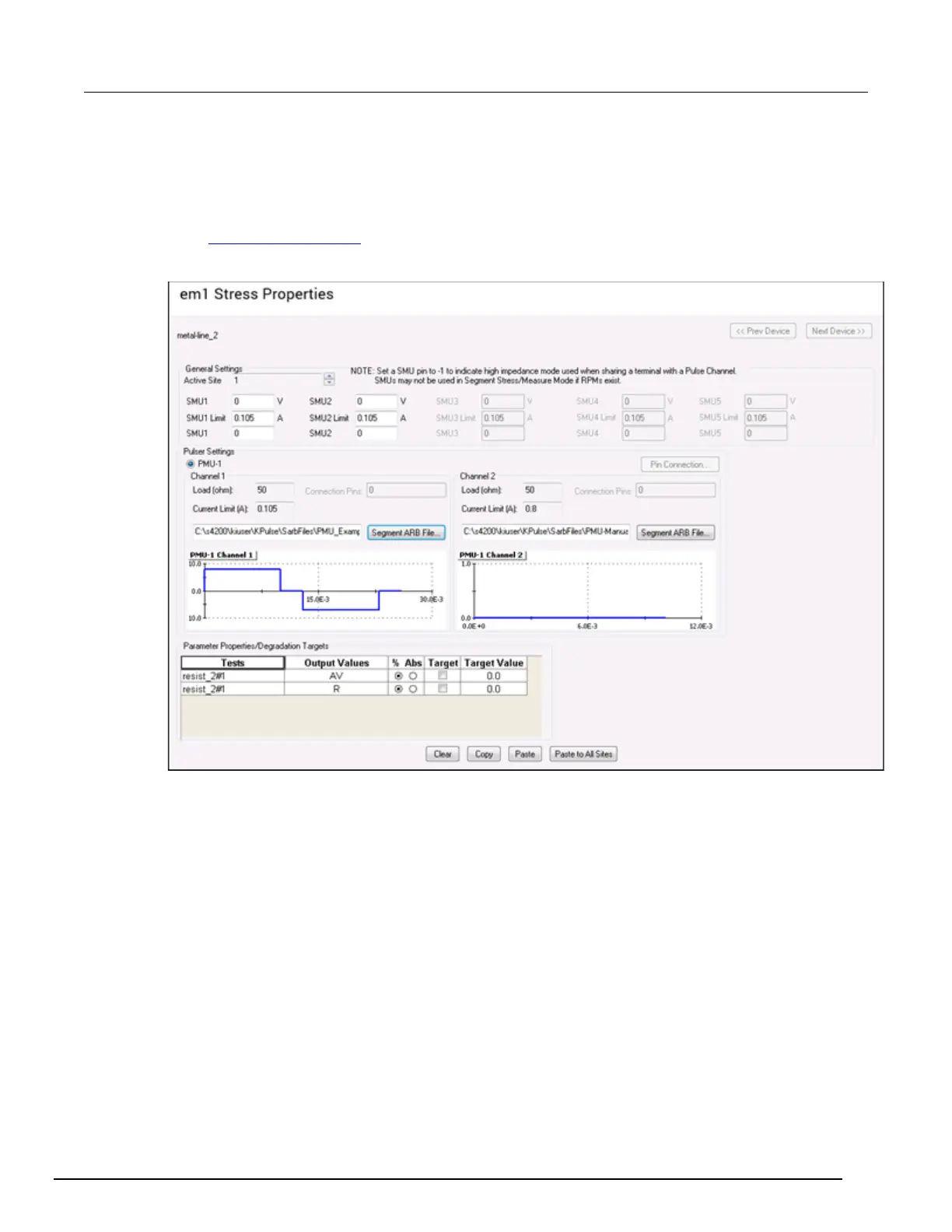

Figure 335: Segment stress/measure properties
Import KPulse Segment Arb waveform files
If you exported a Segment Arb waveform file from KPulse, you can import it into the Segment
Stress/Measure Mode Properties pane.
Segment Arb waveform files have the extension .ksf and are normally stored at the following
location:
C:\s4200\kiuser\KPulse\SarbFiles
To import a Segment Arb waveform file:
1. In the Stress Properties pane, select Segment Arb File.
2. Select the file.
3. Select Open.
