Keithley 4200A-SCS Reference Manual

Model 4200A
-SCS Parameter Analyzer Reference Manual Appendix J: Using a Cascade Summit-
12000 Prober
4200A-901-01 Rev. C / February 2017 J-15
Load, align, and contact the wafer
Using Nucleus UI on the probe station computer:

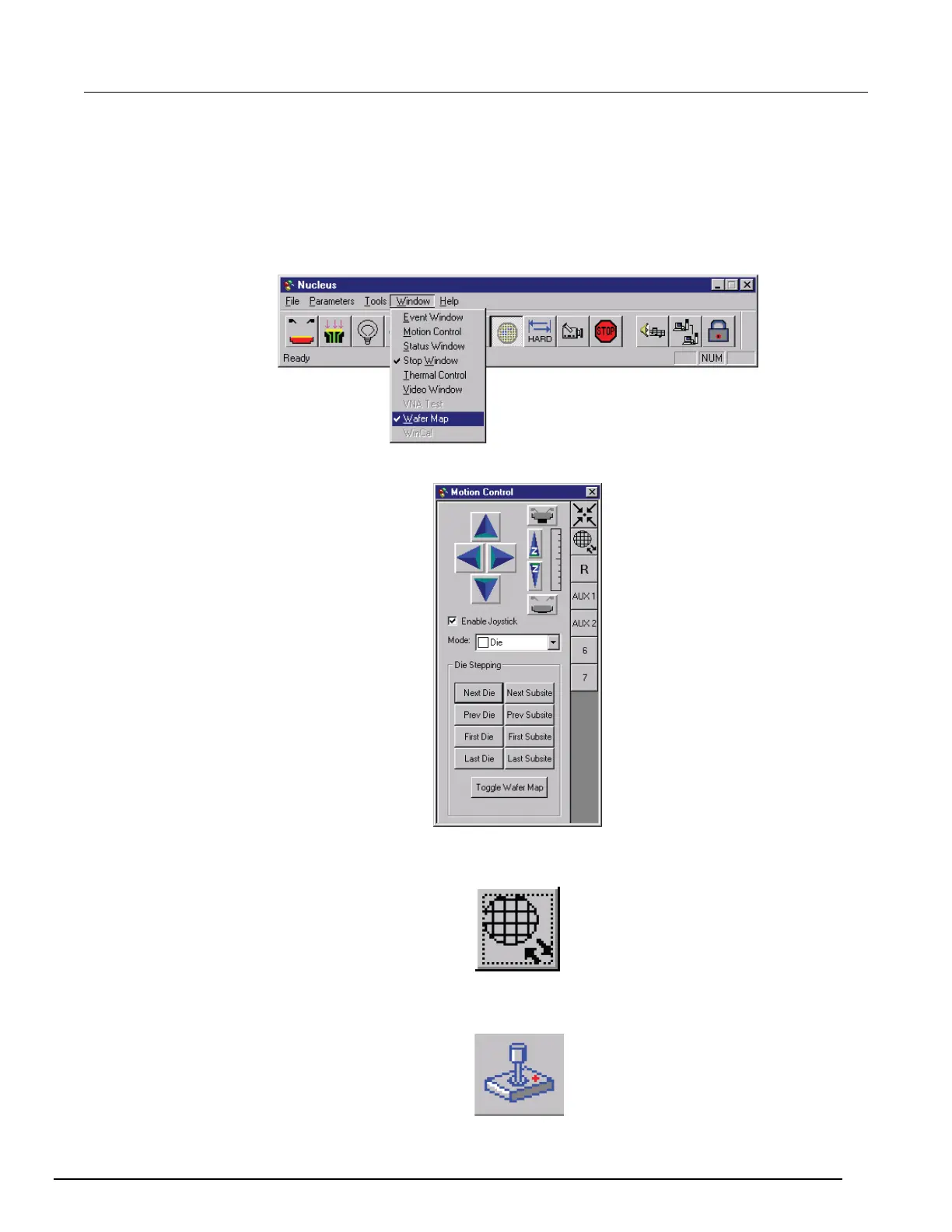

1. From the Nucleus toolbar, select Window > Motion Control. The Motion Control window opens.
See the following two figures.
Figure 761: Nucleus toolbar
Figure 762: Motion Control window
2. From the Motion Control window, click the Chuck to front button.
Figure 763: Chuck to front button
3. From the Nucleus toolbar, click the Enable Joystick button.
Figure 764: Enable Joystick button
