Model 4200A

-SCS Parameter Analyzer Reference Manual Section 4: Multi-frequency capacitance-

voltage unit

4200A-901-01 Rev. C / February 2017 4-27

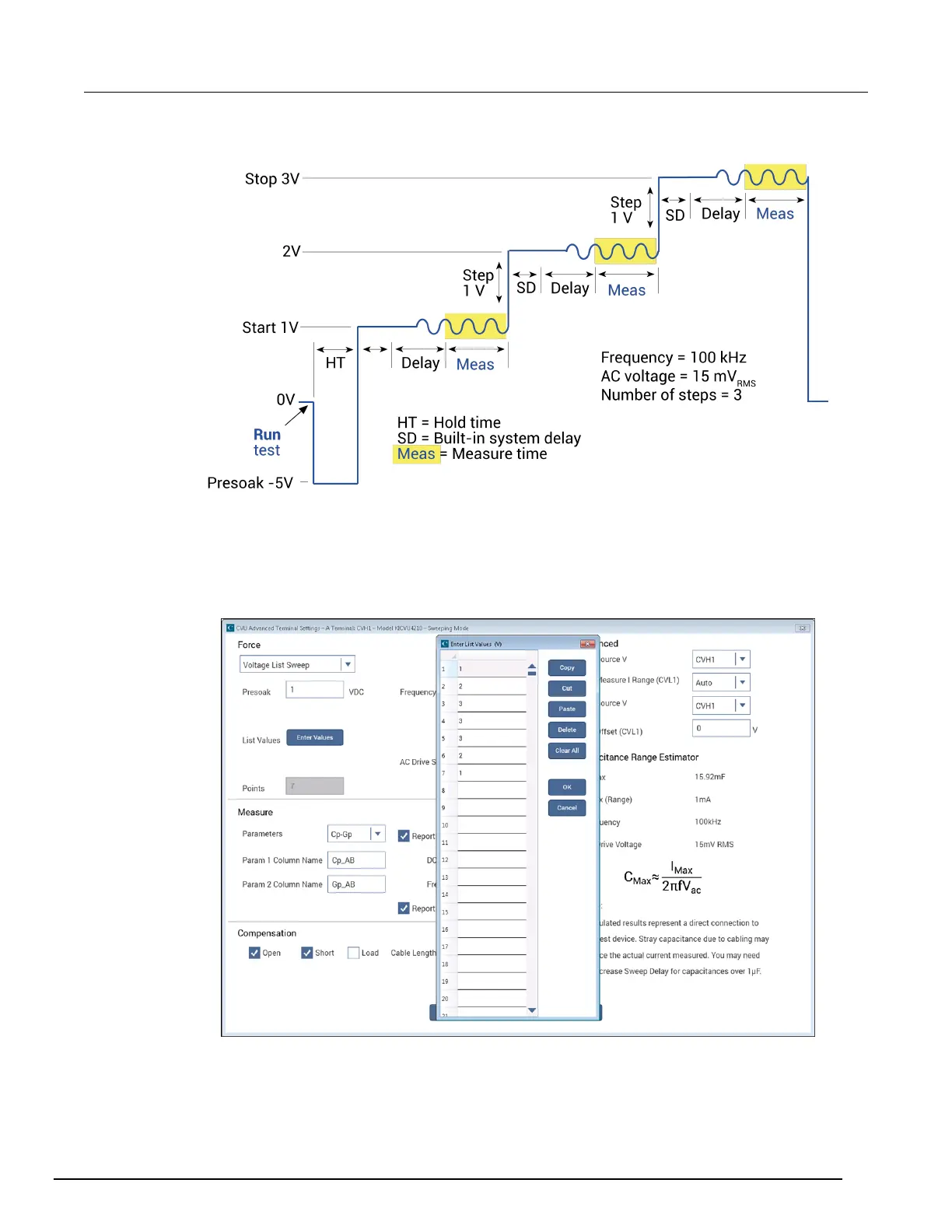

Figure 106: CVU voltage sweep output

CVU using voltage list sweep

This figure shows an example of the Advanced Terminal Settings dialog box when CVU Voltage List

Sweep is selected as the operation mode, set to measure Cp-Gp.

Figure 107: CVU Voltage List Sweep
