Model 4200A

-SCS Parameter Analyzer Reference Manual Appendix J: Using a Cascade Summit-

12000 Prober

4200A-901-01 Rev. C / February 2017 J-21

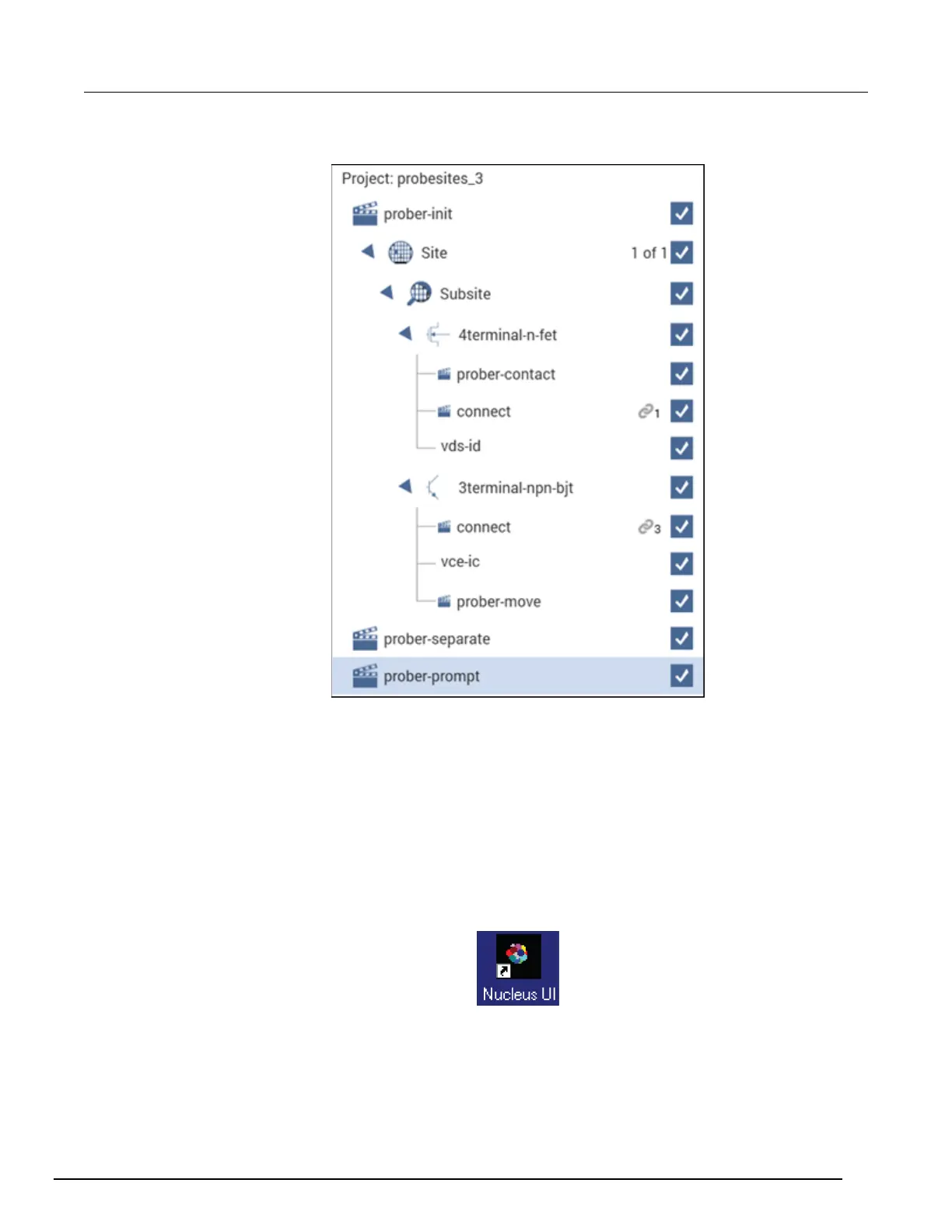

Figure 777: probesites project tree

6. Click Run.

Probesubsites Clarius Project example

The following is a step-by-step procedure to configure the Summit-12000 so the probesubsites

project executes successfully.

Using the Nucleus UI on the probe station computer:

1. If the Nucleus toolbar is not already open, double-click the Nucleus icon on the Windows

desktop.

Figure 778: Nucleus icon
