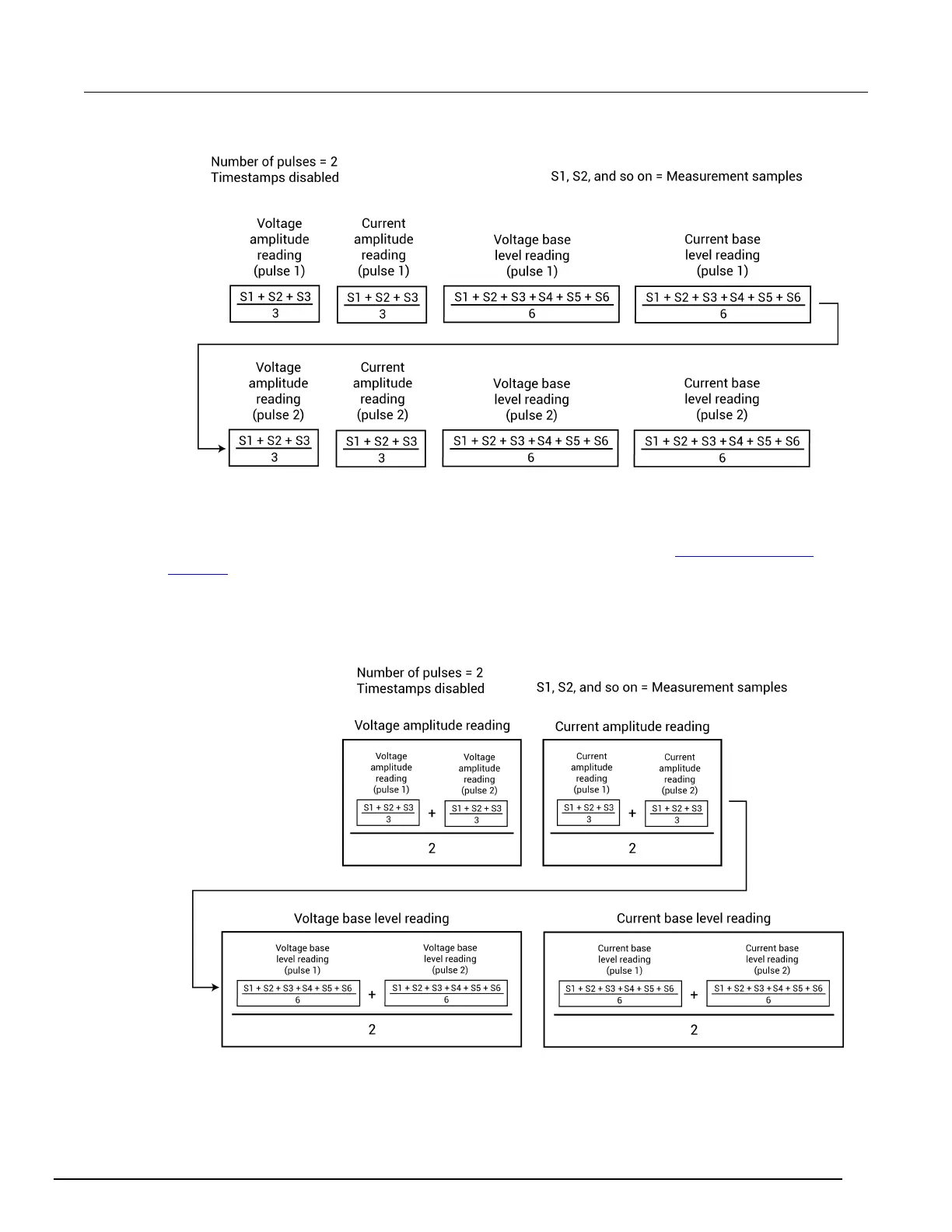

Figure 203: Returned data set for spot mean discrete readings
Spot mean average readings
For this data acquisition type, each returned reading is a mean-of-the-means. Spot mean average
averages the mean readings for all the pulses in the burst. In the figure in
Spot mean discrete
readings (on page 5-70), each mean reading for pulse 1 is averaged with each corresponding mean
reading for pulse 2 to yield the mean-of-the-means readings shown below. With all voltage and
current readings enabled, four readings are returned for the burst. When time stamps are enabled, a
timestamp is included in the data set after each mean-of-the-means reading.
Figure 204: Returned data set for spot mean average readings
