Test and terminal setting descriptions
The following topics provide descriptions of the parameters you can set for each instrument and
operation mode.
Operation Mode (SMU)
The following topics describe the operation modes that are available when a SMU is selected as the
instrument.

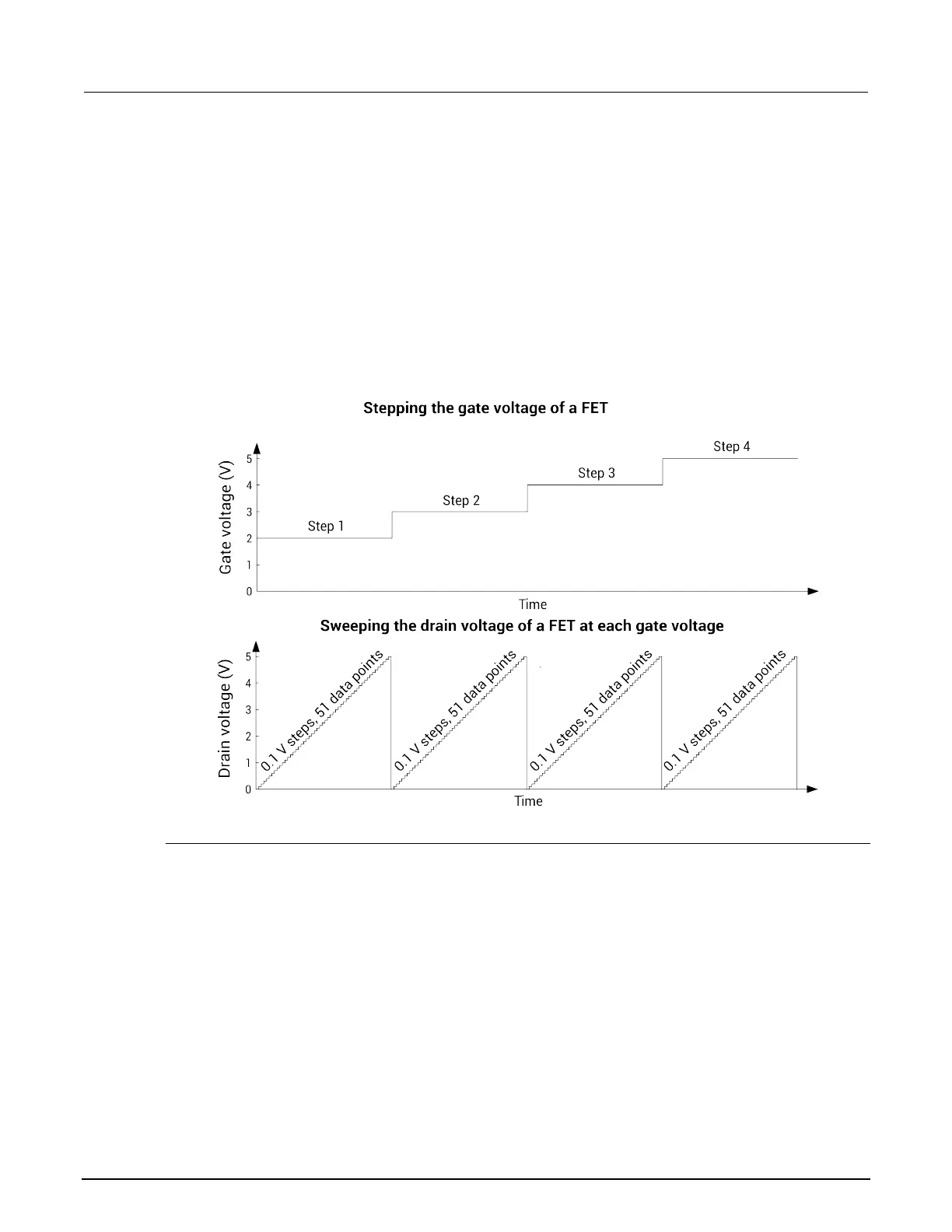

Some of the operation modes allow sweeping or stepping. The figure below illustrates the difference
between steps and sweeps.
Figure 224: Stepping and sweeping example
Open operation mode - SMU
Open operation mode maintains a zero-current state at the terminal, subject to the maximum voltage
compliance of the connected SMU.
You cannot set any parameters for the Open operation mode.
