-SCS Parameter Analyzer Reference Manual Section 5: Pulse measure and pulse generator units
4200A-901-01 Rev. C / February 2017 5-17
4225-RPM connections
Turn off the system and disconnect the power cord before connecting or disconnecting the RPM to
or from the PMU. Failure to do so may result in RPM or PMU damage, possibly voiding the warranty.
RPM connection to the PMU
The RPM is matched to a PMU card and channel. Make sure to connect the RPM only to that PMU
card and channel.
With system power off, use the supplied RPM cable to connect a 4225-RPM to the matching RPM
channel of the 4225-PMU (see next figure).
With an RPM installed, never make connections directly to any of the SMA connectors (CH1 and
CH2) on the PMU. This may result in damage to the PMU or DUT, or may produce corrupt data.

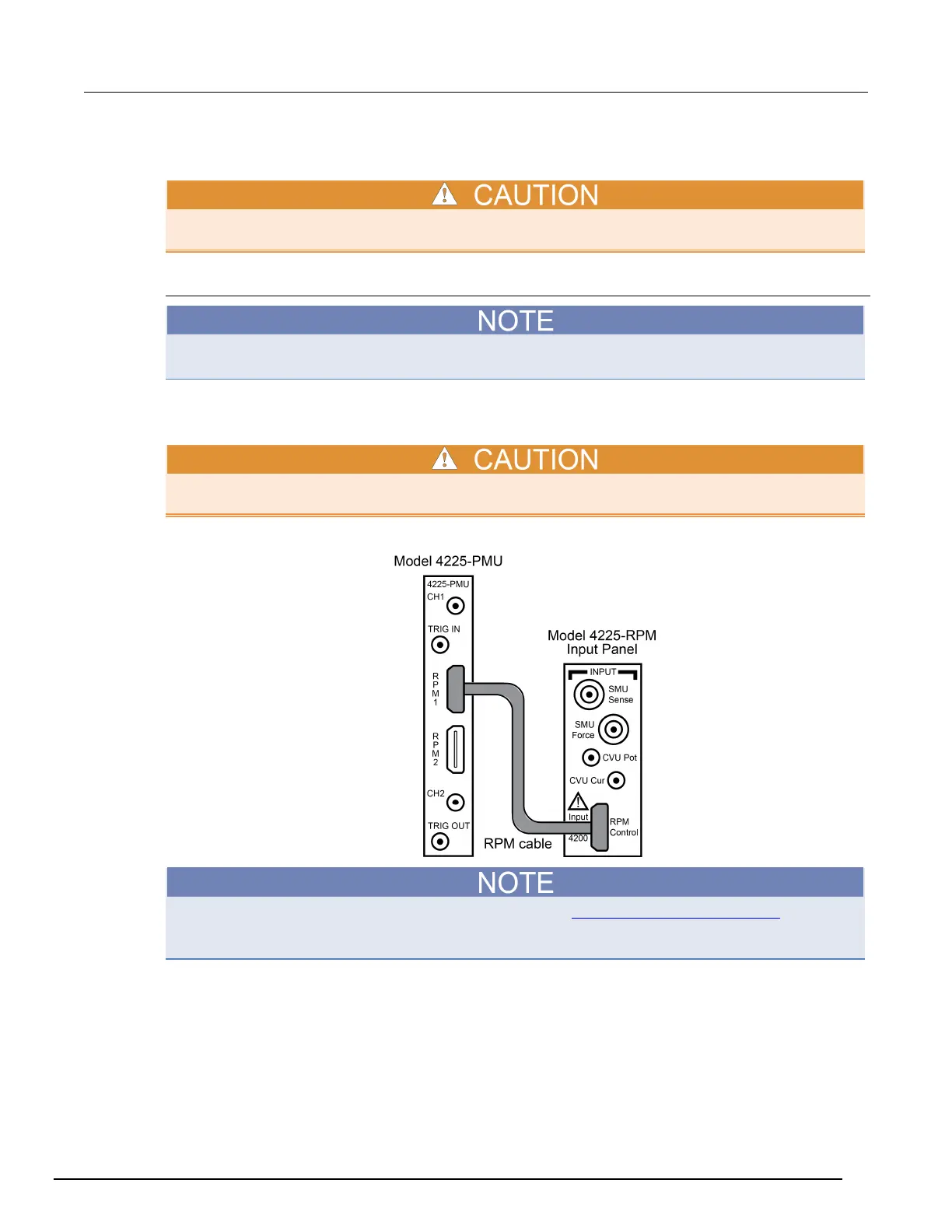

Figure 156: PMU connection to the RPM
After connecting or removing an RPM, always perform the Update the RPM configuration (on page
7-10) procedure to ensure that KCon accurately represents the present 4200A-SCS hardware
configuration.
