Keithley 4200A-SCS Reference Manual

Model 4200A
-SCS Parameter Analyzer Reference Manual Section 9: Keithley External Control Interface (KXCI)
4200A-901-01 Rev. C / February 2017 9-7
Logging commands
When you send a command:
• The left side of the user interface (the command and message display area) displays each
command as it is received, as shown in the figure below.

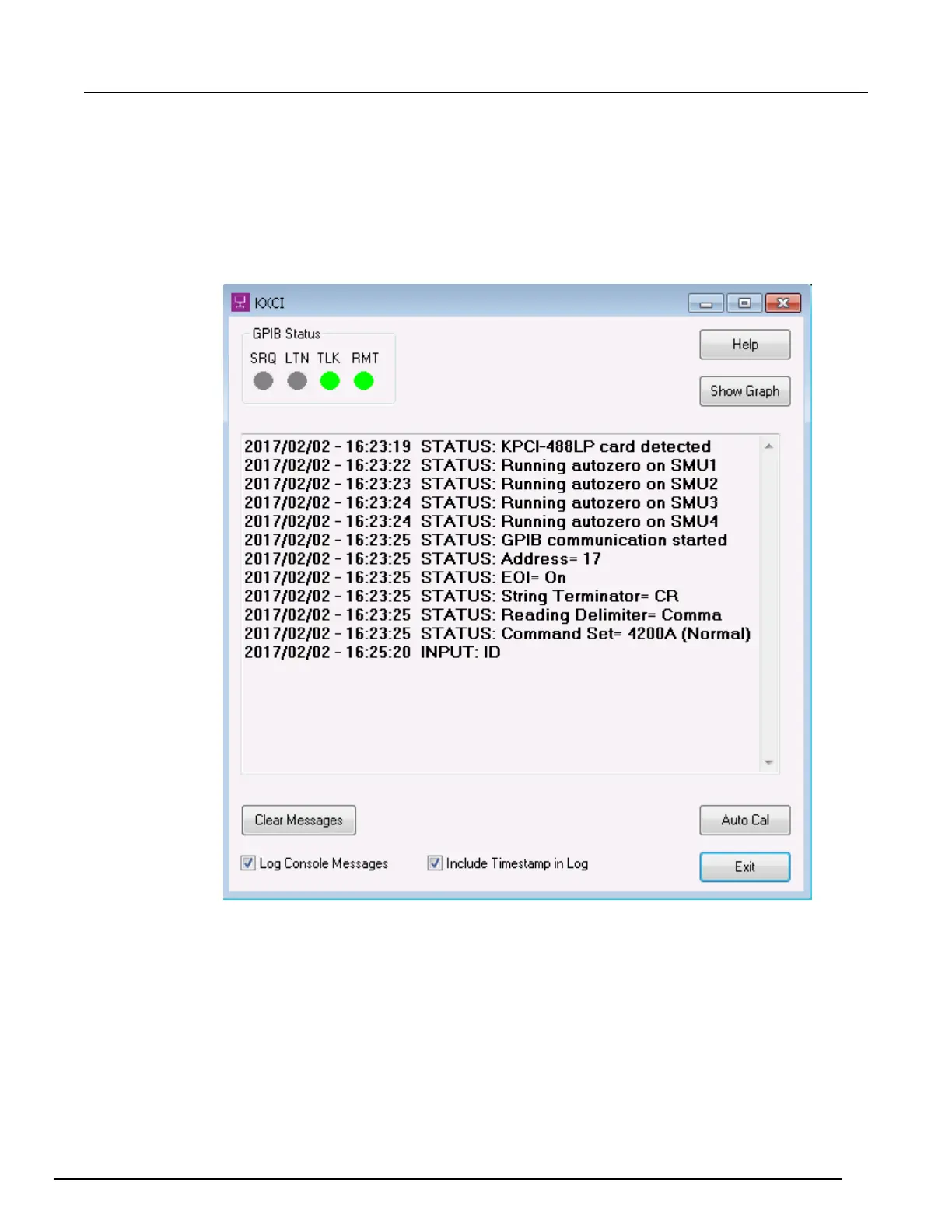

Figure 463: Command and message display area
 If Console Logging Enabled is selected, KXCI also logs each command into the KXCI log file
(C:\s4200\sys\KXCI\KXCILogfile.txt).
 If Include Timestamp in Log is selected, KXCI logs a timestamp for each command.
Logging errors
The command and message display area displays error messages as they occur.
