Keithley 4200A-SCS Reference Manual

Model 4200A
-SCS Parameter Analyzer Reference Manual Appendix A:
Using switch matrices
4200A-901-01 Rev. C / February 2017 A-17
Signal paths to a DUT
The following figures show signal path examples from the various test instruments through the matrix
switches to a DUT.
4200A-SCS signal paths

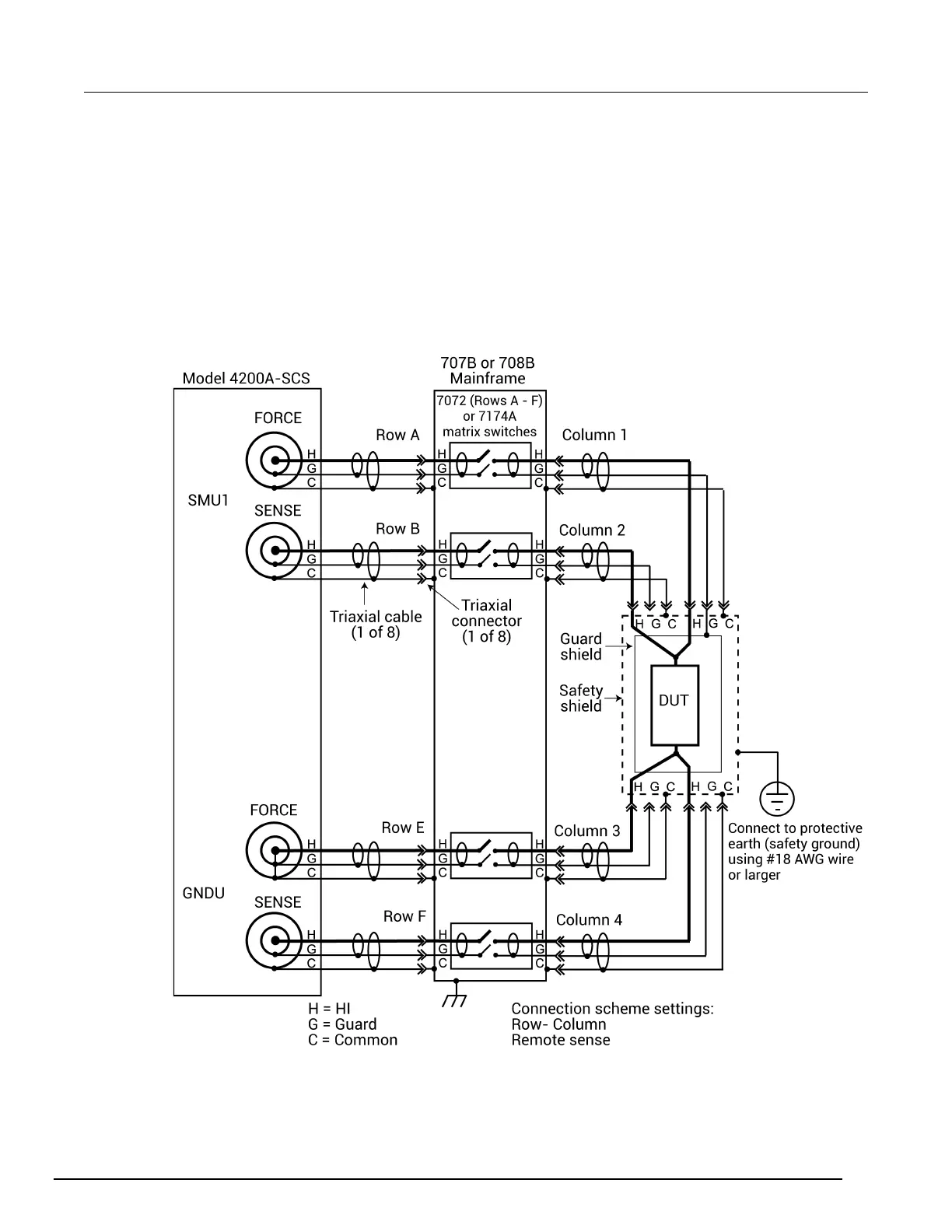

The following figure shows remote sensing (4-wire) signal paths through a matrix card using two-pole
switching. Two-pole switching is provided by the 7174A and 7072 (rows A through F).
Figure 533: 4200A-SCS signal paths through a two-pole matrix card using remote sensing
