To enter Segment Arb values:
1. In Clarius, select the project.
2. Select the test.
3. Select Configure.
4. Select the Enter Values button for each array. The Enter List Values dialog box opens.

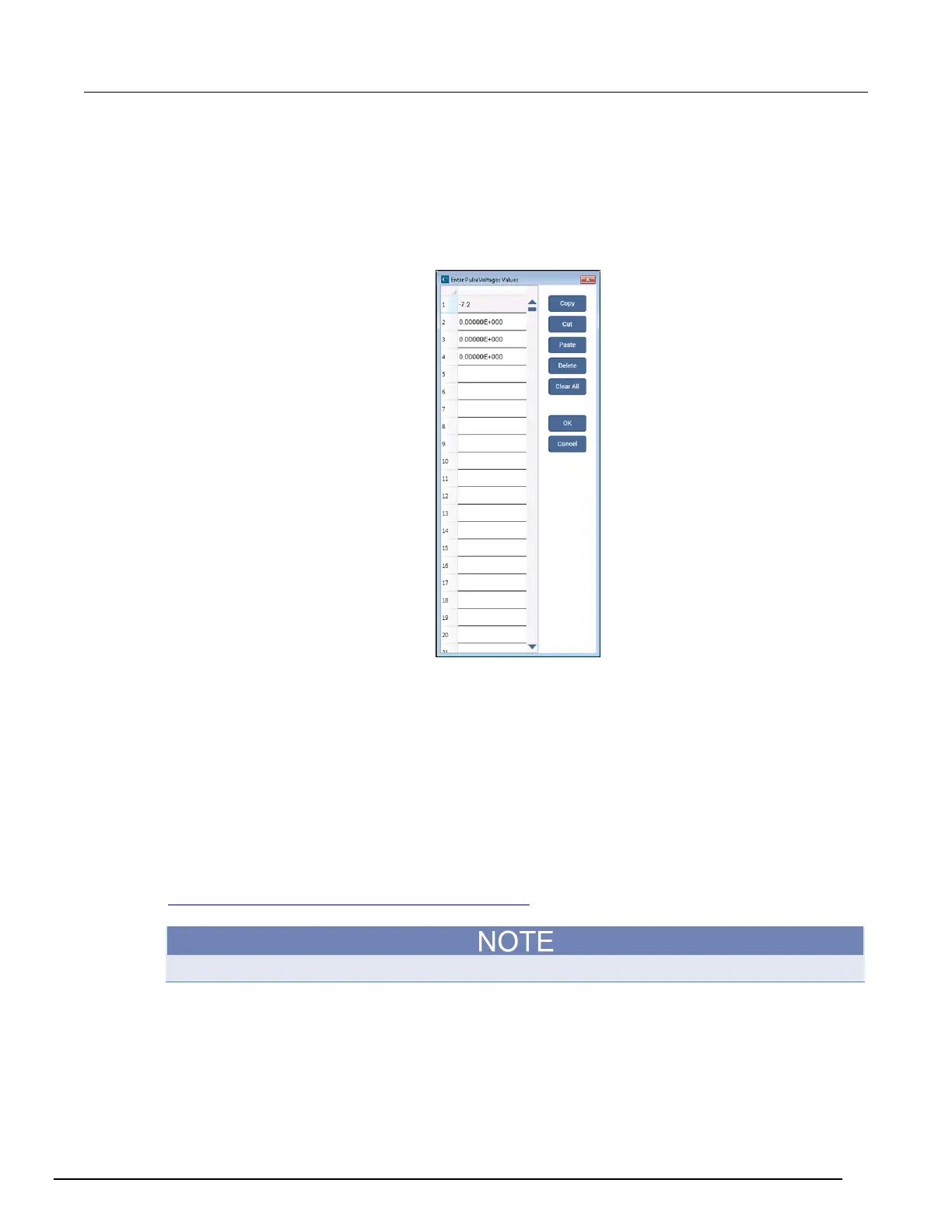

Figure 408: Enter Value dialog box for arrays
5. Enter the values.
6. Select OK.
7. For any stress and measure loop tests, such as endurance or disturb, use KPulse to define
and export the waveform files, then import waveforms into the Subsite Stress Properties. Note
that if the same waveform is required in the test and the Subsite Stress Properties, you must
make sure the waveform information is the same for both.
Refer to the Clarius Help pane for information on the other parameters for each test.
Direct connections to single DUT
Cabling instructions for direct connections to a single DUT are below. Also refer to the figure in
Connections for endurance testing - no switch matrix (on page 6-344
).
In all of the following steps, apply sufficient torque using an 8 in. lb. torque wrench.
These instructions are compatible with the following memory projects:
• flash-nand
• flashdisturb-nand
• flashendurance-nand
