J: Using a Cascade Summit-12000 Prober Model 4200A-SCS Parameter Analyzer
J-20 4200A-901-01 Rev. C / February 2017
3. Select Probe Station.
4. Select OK. The KCon navigation displays PRBR1 in the Configuration Navigator and the
properties.

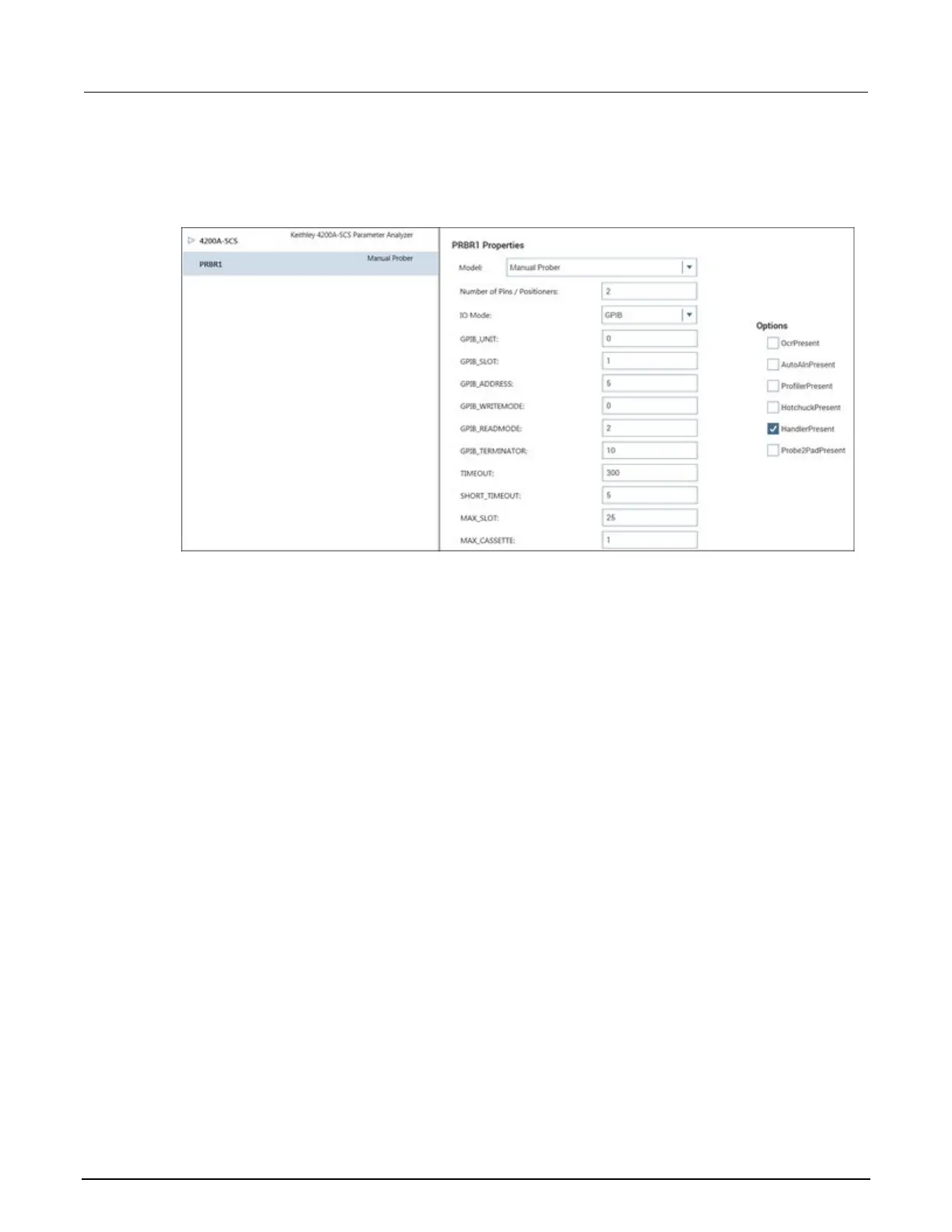

Figure 776: Use KCon to select a prober
5. Select the Cascade prober as the model.
6. Make sure the Number of Pins / Positioners is correct. The number of pins defined here
determines the pins that are available to assign to a switch matrix card column.
7. Select Save.
8. Exit KCon.
Clarius
Use Clarius to load and run the probesites project using the new KCon configuration file, which
allows you to execute the project for this prober.
On the 4200A-SCS:
1. Open Clarius.
2. Choose Select.
3. Select Projects.
4. Search for probe.
5. Drag the probesites project to the project tree.
