Settling time is measured from the 90 percent point on the rising edge to the point where the pulse
level remains in the accuracy band, as shown in the following figure.

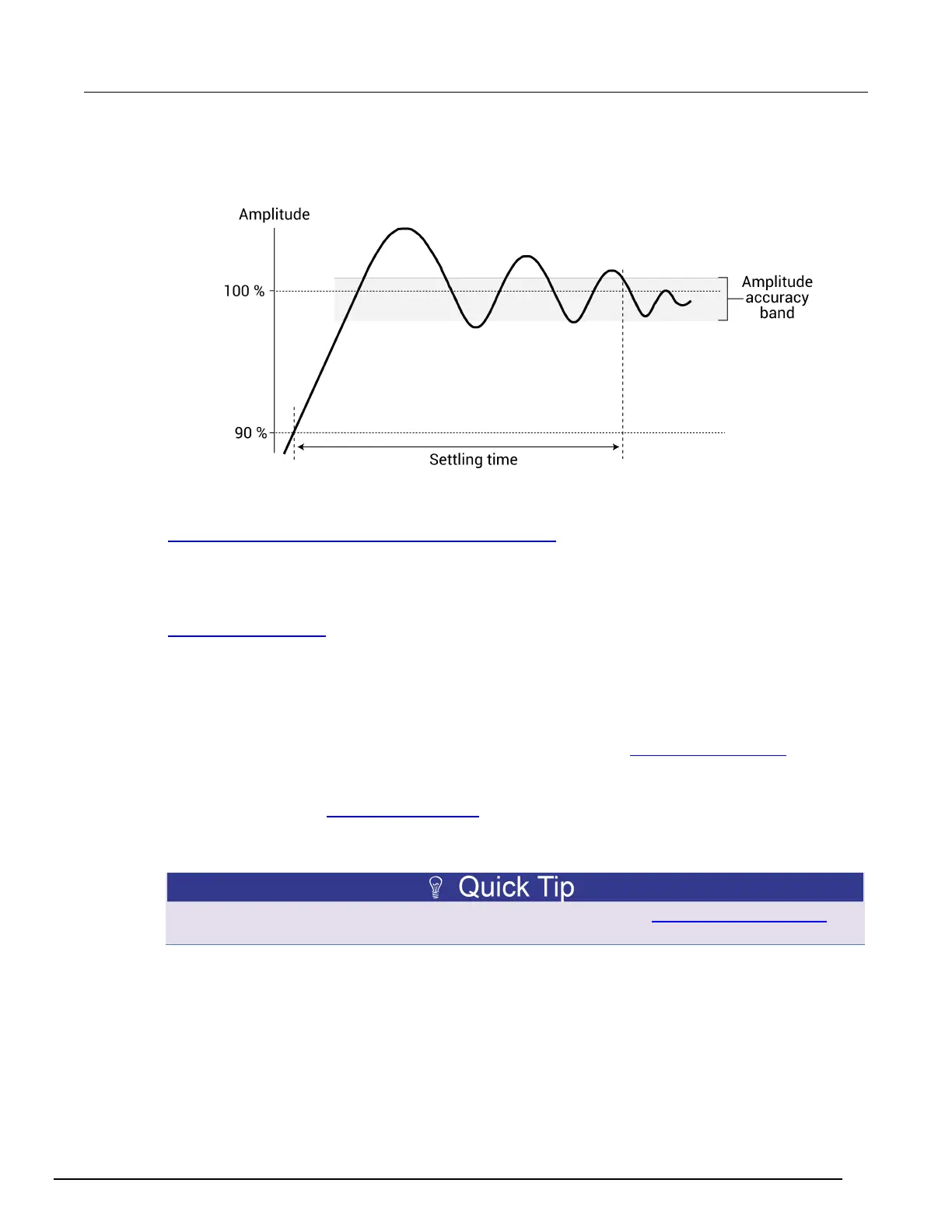

Figure 272: Settling time
Sweep Master
Designates which instrument is the master if there are multiple steps or sweeps in a test. Refer to
Step or sweep multiple device terminals in the same test (on page 6-144
) for detail.
Set up a complex project
Set up a simple project (on page 6-9) describes how to set up a project with devices and tests for
those devices. However, if your system includes wafers, external equipment, or custom tests, you
need to add additional items to your project tree to accommodate them.
You can include the following operations and objects in the project:
• Custom tests or actions.
• Prober movement between project sites and subsites. Refer to Set up a Probe Station (on page
F-1) for detail.
• Using switch matrices to cycle electrical connections from the 4200A-SCS between the devices of
a subsite. Refer to Using Switch Matrices (on page A-1
) for detail.
This section describes how to add custom tests, actions, sites, and subsites to Clarius and to the
project tree.
For information on adding, duplicating, and importing projects, refer to Working with My Projects (on
page 6-16).
